Parking Brake Inspection: Inspection

Courtesy of HONDA, U.S.A., INC.

Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.

Avoid breathing dust particles.
Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

4. Parking Brake - Inspect

Courtesy of HONDA, U.S.A., INC.

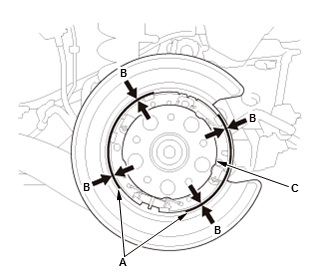

1. Check the parking brake linings (A) for cracking, glazing, wear, and contamination

2. Measure the parking brake lining thickness (B). Measurement does not include brake shoe thickness.

Parking brake lining thickness:
	Standard:	1.7-3.0 mm (0.067-0.118 in)
	Service limit:	1.0 mm (0.039 in)

3. If any part of the parking brake lining thickness is less than the service limit, replace all of the parking brake shoes as a set .

4. Check the hub (C) for smooth operation. If it requires servicing, replace the hub bearing unit .

Courtesy of HONDA, U.S.A., INC.

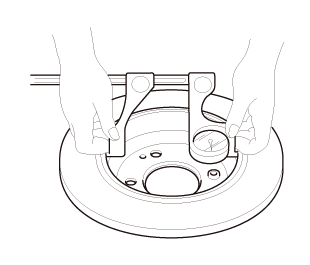

5. Measure the inside diameter of the parking brake drum with an inside vernier caliper.

Parking brake drum inside diameter:
	Standard:	200 mm (7.87 in)
	Service limit:	201 mm (7.91 in)

6. If the inside diameter of the parking brake drum is more than service limit, replace the brake disc/drum .

7. Check the parking brake disc/drum for scoring, grooves, and cracks.
