Parking Brake System - Service Information
>>
Removal & Installation
>>
Parking Brake Shoe Removal & Installation
>>
Exploded View
Exploded View

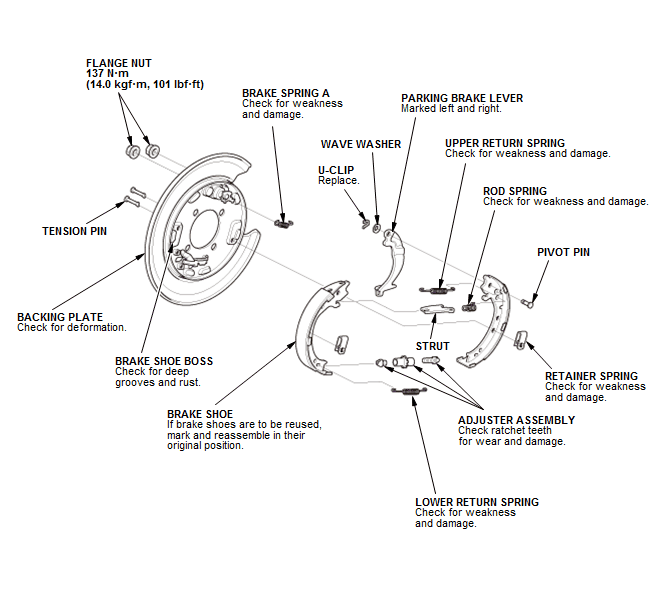

1. Parking Brake Shoe - Exploded View
Exploded View
Courtesy of HONDA, U.S.A., INC.
