Parking Brake Shoe Removal & Installation: Removal

Courtesy of HONDA, U.S.A., INC.

Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.

• Avoid breathing dust particles.
• Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

• 1. Vehicle - Lift
• 2. Rear Wheels - Remove
• 3. Brake Disc/Drum - Remove
• 4. Parking Brake Shoe - Remove

  Courtesy of HONDA, U.S.A., INC.

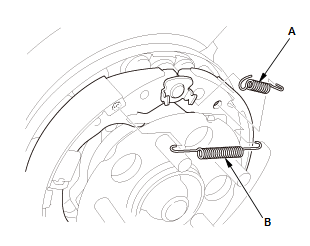

  1. Disconnect and remove brake spring A

  2. Disconnect and remove the upper return spring (B).

  Courtesy of HONDA, U.S.A., INC.

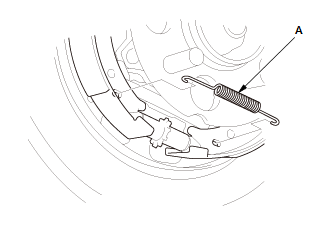

  3. Disconnect and remove the lower return spring (A).

  Courtesy of HONDA, U.S.A., INC.

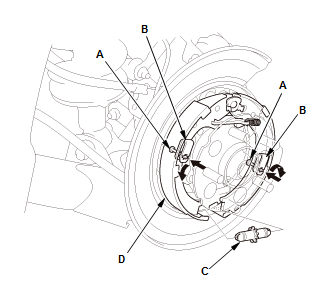

  4. Remove the tension pins (A) by pushing the respective retainer springs (B), and turning the pin 5. Remove the adjuster assembly (C) by moving forward brake shoe (D).

  Courtesy of HONDA, U.S.A., INC.

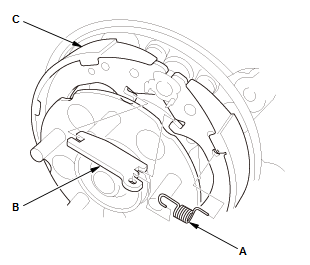

  6. Disconnect the rod spring (A), and remove the strut (B) 7. Remove the forward brake shoe (C).

  Courtesy of HONDA, U.S.A., INC.

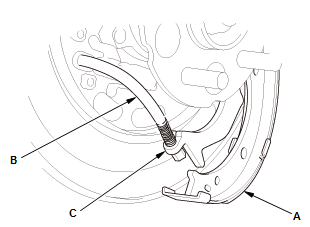

  8. Remove the rearward brake shoe (A) by disconnecting the rear parking brake cable (B) from the parking brake lever (C).

• 5. Parking Brake Lever - Remove

  Courtesy of HONDA, U.S.A., INC.

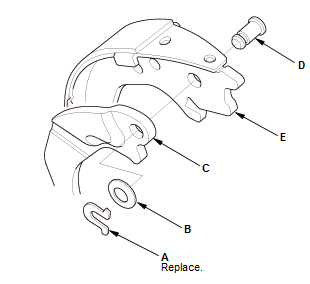

  1. Remove the U-clip (A), the wave washer (B), the parking brake lever (C), and the pivot pin (D) from the brake shoe (E).
