CR-V EX, Eng CD K24W9, FWD
>>
Repair and Diagnosis (Single Page)
>>
Brakes
>>
Traction Control
>>
VSA System - Testing & Troubleshooting
>>
Description
>>
VSA System Description - System Diagram
VSA System Description - System Diagram

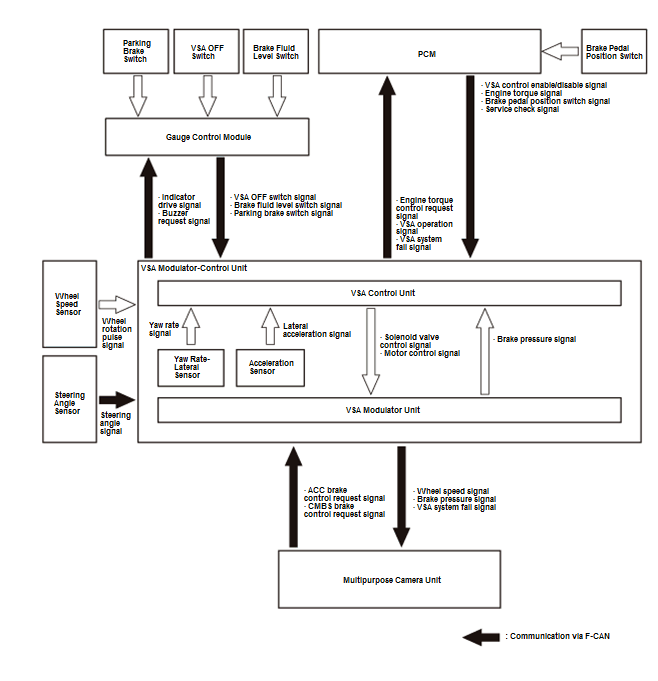

The system diagram of the VSA system is shown below.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
