Disassembly & Reassembly
>>
Intermediate Shaft Disassembly & Reassembly
>>
Exploded View
Exploded View
1. Intermediate Shaft - Exploded View
Exploded View

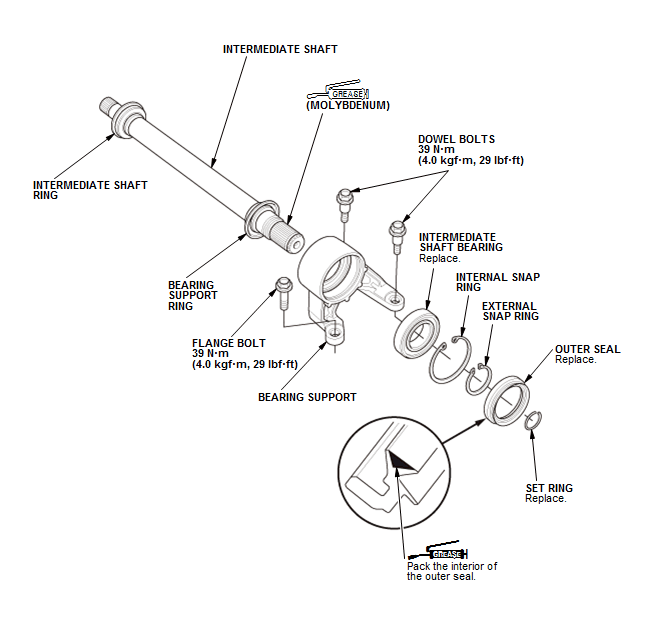

Fig 1: Exploded View Of Intermediate Shaft With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
