Real Time AWD Control Unit Removal & Installation(AWD): Removal

1. Rear Left Side Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Pillar Areas Interior Trim Removal and Installation - Tailgate Areas Interior Trim Removal and Installation - Cargo Areas Interior Trim Removal and Installation - Rear Side Area Interior Trim Removal and Installation - Door Areas
2. Real Time AWD Control Unit - Remove

Courtesy of HONDA, U.S.A., INC.

1. Turn the vehicle to the OFF (LOCK) mode

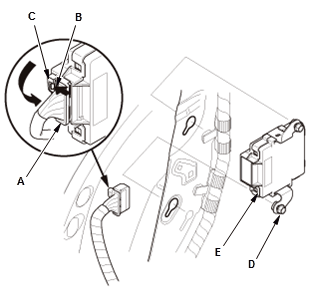

2. Disconnect the connector (A) by pushing the lock (B) and Pull down the lever (C); the connector disconnects itself

3. Loosen the real time real time AWD control unit mounting bolts (D), then remove the real time AWD control unit (E).
