Rear Differential Breather Box & Hose Removal & Installation(4WD): Installation

1. Rear Differential Breather Box and Hose - Install

Courtesy of HONDA, U.S.A., INC.

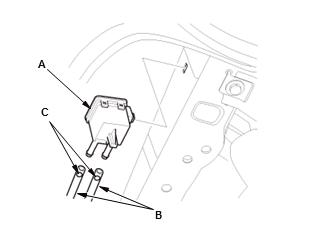

1. Install the breather box (A)

2. Connect the breather hoses (B) to the breather box at the paint marks (C).

Courtesy of HONDA, U.S.A., INC.

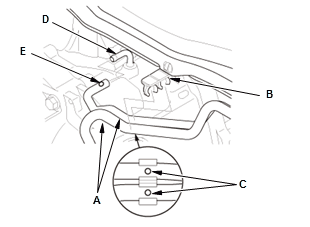

3. Install the breather hoses (A) to the clamps (B) at the paint marks (C)

4. Connect the breather hose to the rear differential breather pipe (D) at the paint mark (E).

Courtesy of HONDA, U.S.A., INC.

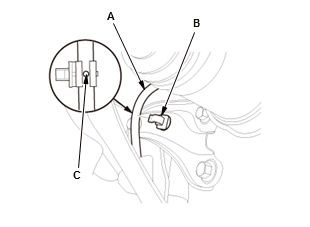

5. Install the breather hose (A) to the clamp (B) at the paint mark (C).
