Rear Differential Breather Box & Hose Removal & Installation(AWD): Removal

2. Rear Differential Breather Box and Hose

Courtesy of HONDA, U.S.A., INC.

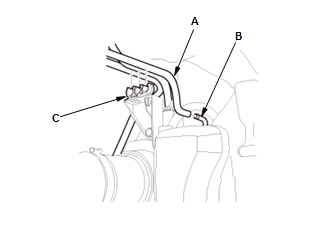

1. Disconnect the breather hose (A) from the rear differential breather pipe (B)

2. Remove the breather hoses from the clamps (C).

Courtesy of HONDA, U.S.A., INC.

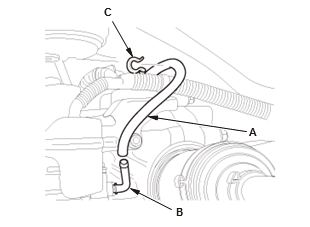

3. Disconnect the breather hose (A) from the pump motor breather pipe (B) and clamp (C).

Courtesy of HONDA, U.S.A., INC.

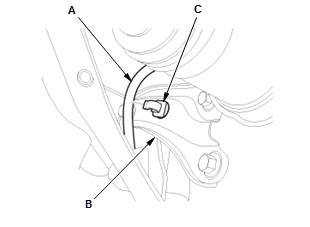

4. Remove the breather hose (A) from the clamp (C) on the right rear differential mount bracket B.

Courtesy of HONDA, U.S.A., INC.

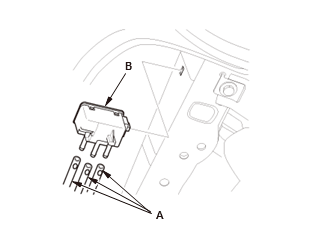

5. Disconnect the breather hoses (A) from the breather box (B)

6. Remove the breather box from the body.
