Rear Differential Breather Box & Hose Removal & Installation(AWD): Installation

Courtesy of HONDA, U.S.A., INC.

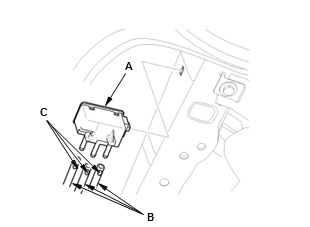

1. Install the breather box (A) to the body

2. Connect the breather hoses (B) to the breather box at the paint marks (C).

Courtesy of HONDA, U.S.A., INC.

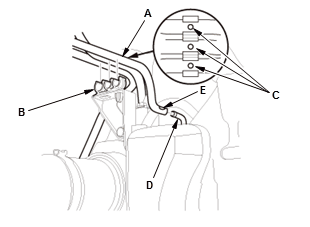

3. Install the breather hoses (A) to the clamps (B) at the paint marks (C) 4. Connect the breather hose to the rear differential breather pipe (D) at the paint mark (E).

Courtesy of HONDA, U.S.A., INC.

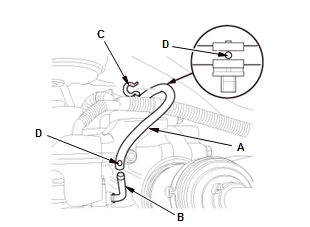

5. Connect the breather hose (A) to the pump motor breather pipe (B) and clamp (C) at the paint marks (D).

Courtesy of HONDA, U.S.A., INC.

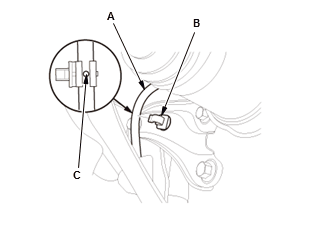

6. Install the breather hose (A) to the clamp (B) at the paint mark (C).
