Removal & Installation

1. Vehicle - Lift
2. Rear Differential Fluid - Drain - Refer to: Rear Differential Fluid Inspection and Replacement(4WD)Rear Differential Fluid Inspection and Replacement(AWD)

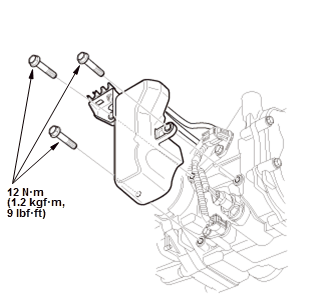

3. Sensor Cover - Remove

Courtesy of HONDA, U.S.A., INC.
4. Rear Differential Fluid Pressure Sensor - Remove

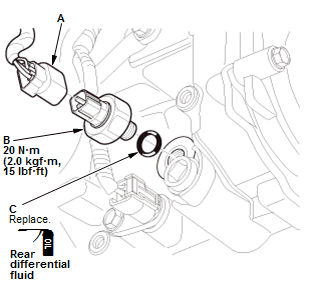

Fig 1: Rear Differential Fluid Pressure Sensor With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connector (A)

2. Remove the rear differential fluid pressure sensor (B) and the O-ring (C).
5. All Removed Parts - Install the rear differential fluid pressure sensor with a new O-ring in the reverse order of removal.
NOTE: Coat a new O-ring with DPSF II.
6. Rear Differential Fluid - Refill - Refer to: Rear Differential Fluid Inspection and Replacement(4WD)Rear Differential Fluid Inspection and Replacement(AWD)
