Rear Differential Housing Assembly Removal & Installation(4WD): Removal

1. Vehicle - Lift
2. Rear Differential - Remove - Refer to: Rear Differential Removal and Installation(4WD) Rear Differential Removal and Installation(AWD)
3. Rear Differential Housing Assembly - Remove

Courtesy of HONDA, U.S.A., INC.

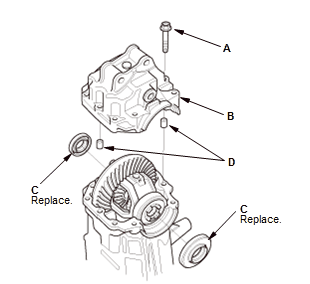

1. Remove the nine mounting bolts (A) in a crisscross pattern in several steps

2. Remove the differential housing assembly (B) and the oil seals (C)

3. Remove the two dowel pins (D) (if equipped).
