Removal & Installation

1. Vehicle - Lift
2. Rear Differential Pump Motor - Remove

Courtesy of HONDA, U.S.A., INC.

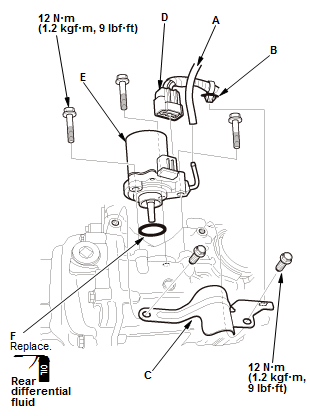

1. Disconnect the breather hose (A)

2. Remove the harness clip (B), and the harness bracket (C)

3. Disconnect the connector (D)

4. Remove the rear differential pump motor (E) and the O-ring (F).
3. All Removed Parts - Install the rear differential pump motor with a new O-ring in the reverse order of removal, and note these items:
NOTE: Coat a new O-ring with DPSF II.
