Rear Differential Removal & Installation(AWD): Removal

1. Vehicle - Lift
2. Rear Differential Fluid - Drain - Refer to: Rear Differential Fluid Inspection and Replacement(4WD)Rear Differential Fluid Inspection and Replacement(AWD)
3. No. 2 Propeller Shaft - Disconnect
4. Rear Differential Connector - Disconnect

Courtesy of HONDA, U.S.A., INC.

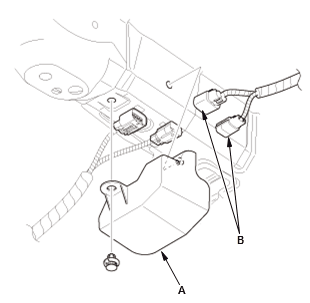

1. Remove the connector cover (A)

2. Disconnect the connectors (B).

Courtesy of HONDA, U.S.A., INC.

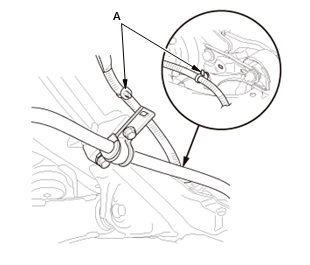

3. Remove the harness clips (A).
5. Breather Hose - Disconnect - Refer to: Rear Differential Breather Box and Hose Removal and Installation(4WD) Rear Differential Breather Box and Hose Removal and Installation(AWD)
6. Rear Differential Jack Support
1. Place a transmission jack under the rear differential assembly.

7. Rear Differential - Disconnect

Courtesy of HONDA, U.S.A., INC.

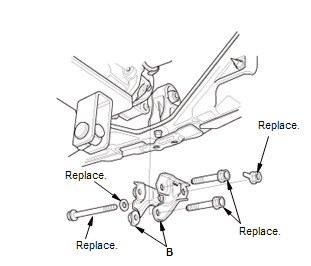

1. Remove the left and right rear differential mount brackets B.

Courtesy of HONDA, U.S.A., INC.

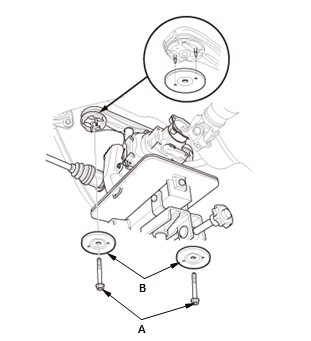

2. Remove the mounting bolts (A) and the plates (B).

8. Rear Driveshaft Inboard Side Both - Disconnect

Courtesy of HONDA, U.S.A., INC.

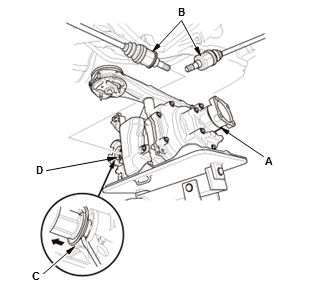

1. Lower the rear differential assembly (A) while pulling both rear driveshaft inboard joints (B) out of the rear differential assembly.

NOTE:

Be careful not to damage the driveshaft ring (C) when prying out the driveshaft inboard joints.
Be careful not to damage the oil seals (D).

Courtesy of HONDA, U.S.A., INC.

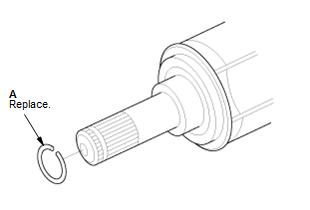

2. Remove the driveshaft inboard joint set ring (A) on both sides.

9. Rear Differential Mount - Remove - Refer to: Rear Differential Mount Removal and Installation(4WD) Rear Differential Mount Removal and Installation(AWD)
