Rear Differential Fluid Inspection and Replacement (4WD): Replacement

1. Vehicle - Lift

2. Rear Differential Fluid - Drain

Courtesy of HONDA, U.S.A., INC.

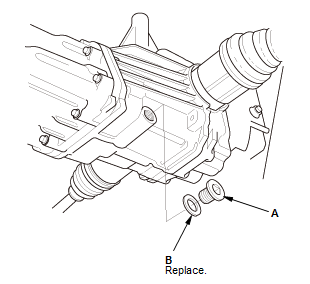

1. Remove the oil filler plug (A) and the sealing washer (B).

Courtesy of HONDA, U.S.A., INC.

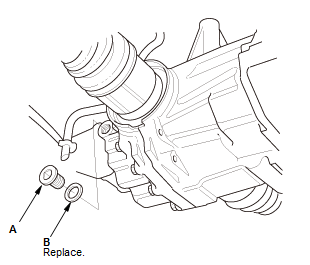

2. Remove the drain plug (A) and the sealing washer (B), then drain the rear differential fluid.

3. Rear Differential Fluid - Refill

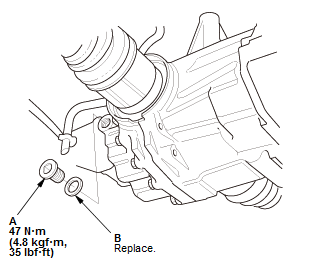

Fig 1: Rear Differential Drain Plug With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Clean the drain plug (A)

2. Install the drain plug with a new sealing washer (B)

3. Refill the rear differential with rear differential fluid to the proper level.

NOTE: If you disassemble the differential, check the rear differential fluid level again after the 4WD system check is finished. Add fluid if necessary.

Fluid Capacity:
	1.2 L (1.3 US qt, 1.1 Imp qt) at fluid change
	1.4 L (1.5 US qt, 1.2 Imp qt) at overhaul

Recommended fluid:

Honda DPSF-II

4. Install the oil filler plug (A) with a new sealing washer (B).

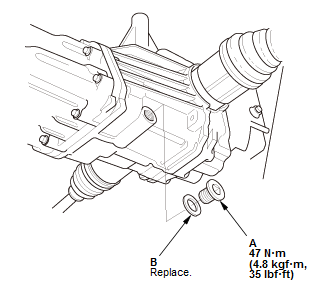

Fig 2: Rear Differential Oil Filler Plug With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

4. Maintenance Minder - Reset - If the Maintenance Minder required to replace the rear differential fluid, reset the Maintenance Minder with the gauge . If the Maintenance Minder did not require to replace the rear differential fluid, reset the Maintenance Minder with the HDS .
