Test Procedure

1. Start the engine

2. Select the FUNCTIONAL TEST in the REAL TIME AWD SYSTEM with the HDS

3. Select the SOLENOID TEST in the FUNCTIONAL TEST with the HDS

4. Do LEVEL 1, then do LEVEL 7 of the SOLENOID TEST in that order with the HDS

5. Check the rear differential solenoid valve for operation with the HDS. A clicking sound should be heard.

• If no clicking sound is heard, replace the rear differential solenoid valve - Refer to: Rear Differential Disassembly and Reassembly (4WD) Rear Differential Disassembly and Reassembly (AWD)  .
• If a clicking sound is heard, go to the next procedure.

Courtesy of HONDA, U.S.A., INC.

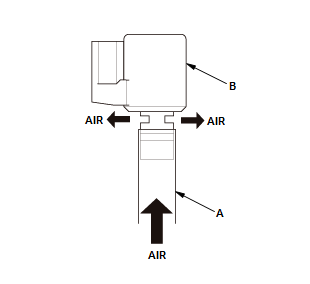

1. Connect a tube (A) to the rear differential solenoid valve (B)

2. Blow the air to the tube.

• If the air flows out of the port, go to step 3.
• If the air does not flow out of the port, replace the rear differential solenoid valve - Refer to: Rear Differential Disassembly and Reassembly (4WD) Rear Differential Disassembly and Reassembly (AWD)  .

Courtesy of HONDA, U.S.A., INC.

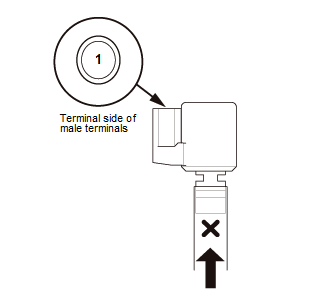

3. Connect a jumper wire from the negative battery terminal to the rear differential solenoid valve body, and connect another jumper wire from the positive battery terminal to connector terminal No. 1 4. Blow the air to the tube. If the air flows out of the port, replace the rear differential solenoid valve - Refer to: Rear Differential Disassembly and Reassembly (4WD) Rear Differential Disassembly and Reassembly (AWD)  . If the air does not flow out of the port, the rear differential solenoid valve is OK, and the test is complete.

1. Select the ADJUSTMENT in the REAL TIME AWD SYSTEM with the HDS.

2. Select the AIR BLEEDING in the ADJUSTMENT with the HDS.

NOTE:  See the HDS Help menu for specific instructions.
