12 Volt Battery Terminal Disconnection & Reconnection: Reconnection

1. 12 Volt Battery Terminal - Reconnect

Courtesy of HONDA, U.S.A., INC.

NOTE: If the 12 volt battery performs abnormally, test the 12 volt battery .

1. Clean the 12 volt battery terminals

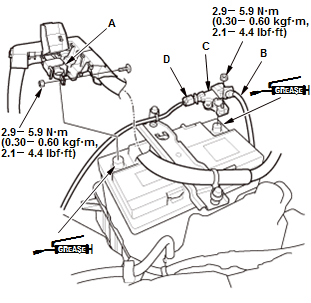

2. Connect the terminal (A) to the 12 volt battery.

NOTE: Always connect the positive side first

3. Connect the cable (B) and the 12 volt battery sensor (C) to the 12 volt battery.

NOTE: To protect the 12 volt battery sensor connector (D) from damage, do not hold it when installing the terminal

4. Apply multipurpose grease to the terminals to prevent corrosion.
