Removal & Installation

2. Console Accessory Power Socket - Remove

Courtesy of HONDA, U.S.A., INC.

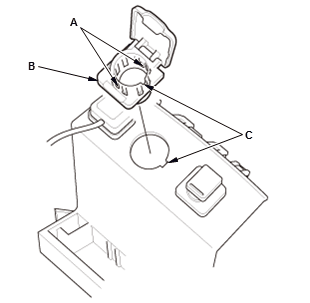

1. Gently press the tabs (A), and remove the console accessory power socket (B).

Courtesy of HONDA, U.S.A., INC.

2. Gently press the tabs (A), and remove the housing (B) from the cover. Note the location of the indexing tabs (C).
