Removal & Installation

1. 12 Volt Battery Terminal - Disconnect
2. Drive Belt - Remove
3. Drive Belt Auto-Tensioner - Remove
4. Alternator - Remove

Courtesy of HONDA, U.S.A., INC.

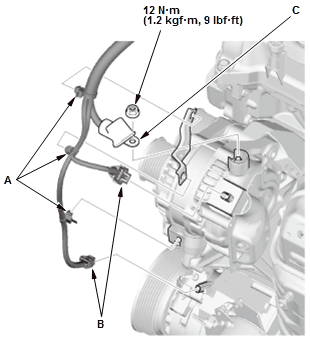

1. Remove the harness clamps (A)

2. Disconnect the connectors (B) and the positive alternator cable (C).

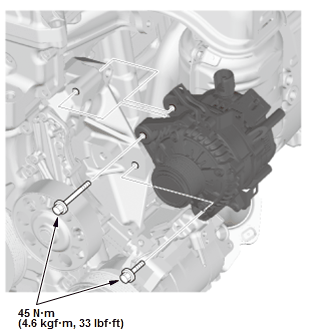

Fig 1: Alternator With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

3. Remove the alternator.
5. All Removed Parts - Install the parts in the reverse order of removal
NOTE: Make sure.the crimped side of the ring terminal faces away from the alternator when you connect the positive alternator cable.
