Removal & Installation

Courtesy of HONDA, U.S.A., INC.

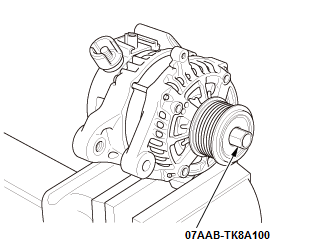

1. Clamp the alternator firmly in a vise

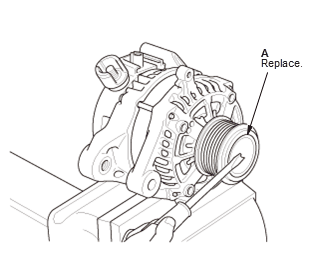

2. Remove the OAD pulley seal cap (A) by piercing the center of the rubber cap with a flat screwdriver and prying it loose.

NOTE:  While the cap is off, the grease inside the OAD pulley is exposed. Do not wipe the grease off, and make sure it does not become contaminated.

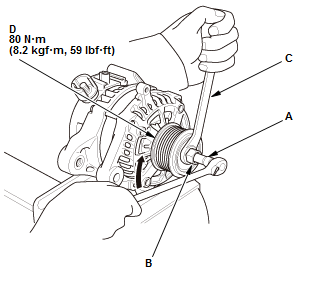

Fig 1: OAD Pulley With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Place a 10 mm hex wrench (A) through center of the alternator OAD pulley holder (B), into hex in the end of the alternator shaft

2. Hold the alternator OAD pulley holder with a 17 mm wrench (C), then turn the alternator shaft clockwise

3. Remove the OAD pulley (D).

NOTE:

• When installing do not distort the OAD pulley seal cap.
• Make sure to check that the cap is installed securely.
