CR-V EX, Eng CD K24W9, FWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Charging Systems
>>
Charging System - Testing & Troubleshooting
>>
Overhaul
>>
Alternator Overhaul
>>
Exploded View
Exploded View
1. Alternator - Exploded View
Exploded View

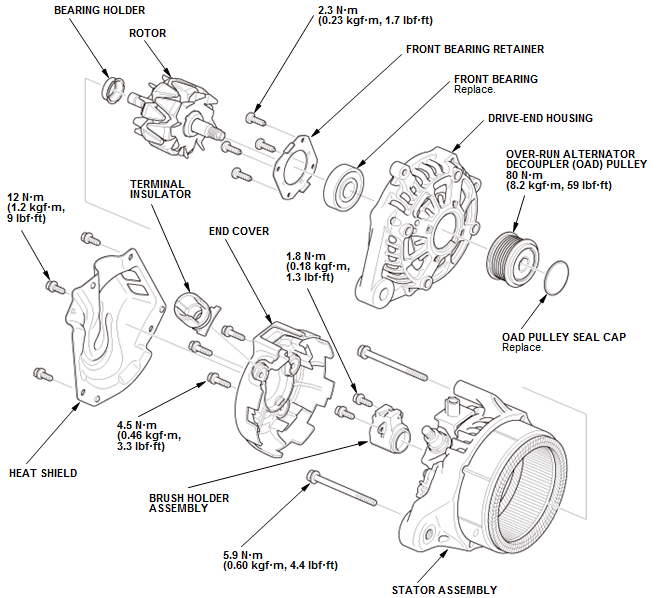

Fig 1: Exploded View Of Alternator With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
