Alternator Overhaul: Reassembly

NOTE:  Refer to the Exploded View if needed during this procedure.

• 1. Front Bearing - Install

  Courtesy of HONDA, U.S.A., INC.

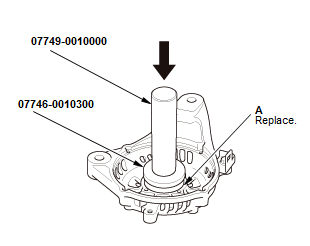

  1. Use a hand press to install a new front bearing (A) in the drive-end housing, with the driver handle, 15 x 135L, and the bearing driver attachment, 42 x 47 mm.

  Courtesy of HONDA, U.S.A., INC.

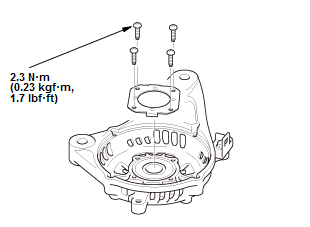

  2. Install the front bearing retainer.

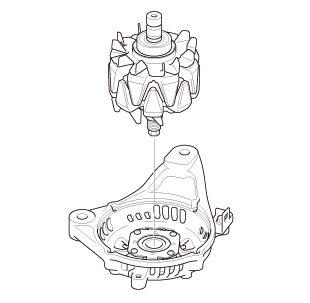

• 2. Rotor - Install

  Courtesy of HONDA, U.S.A., INC.

• 3. Bearing Holder and Stator Assembly - Install

  Courtesy of HONDA, U.S.A., INC.

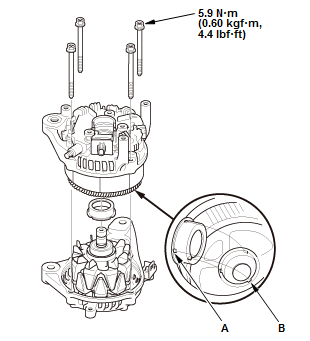

  NOTE:  Align the protrusions (A) of the bearing holder with the grooves (B) of the stator assembly.

• 4. Brush Holder Assembly - Install

  Courtesy of HONDA, U.S.A., INC.

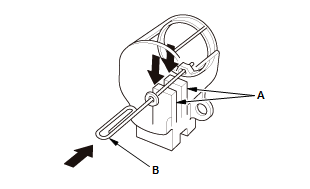

  1. Push the brushes (A) in, then insert a pin or drill bit (B) (about 1.6 mm (1/16 in) diameter) to hold them there.

  Courtesy of HONDA, U.S.A., INC.

  2. Install the brush holder assembly.

  Courtesy of HONDA, U.S.A., INC.

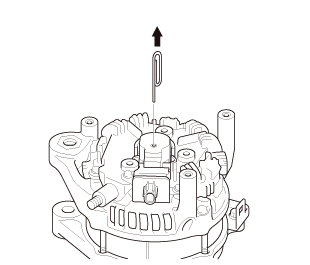

  3. Pull out the pin or drill bit.

• 5. Terminal Insulator, End Cover, and Heat Shield - Install

  Courtesy of HONDA, U.S.A., INC.

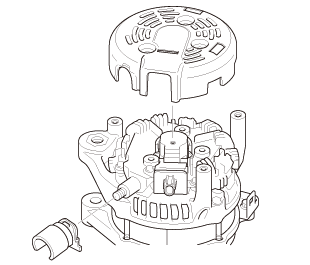

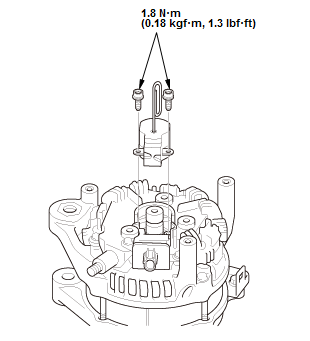

  1. Install the terminal insulator and the end cover.

  Courtesy of HONDA, U.S.A., INC.

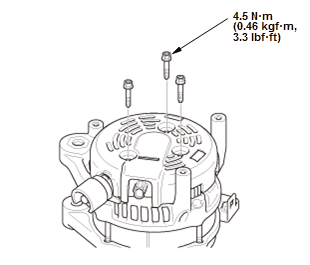

  2. Tighten the three bolts.

  Courtesy of HONDA, U.S.A., INC.

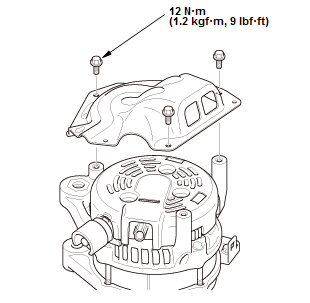

  3. Install the Heat Shield.

• 6. OAD Pulley - Install
