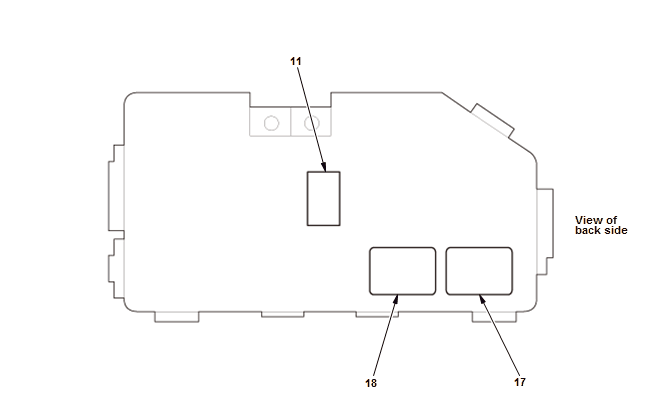

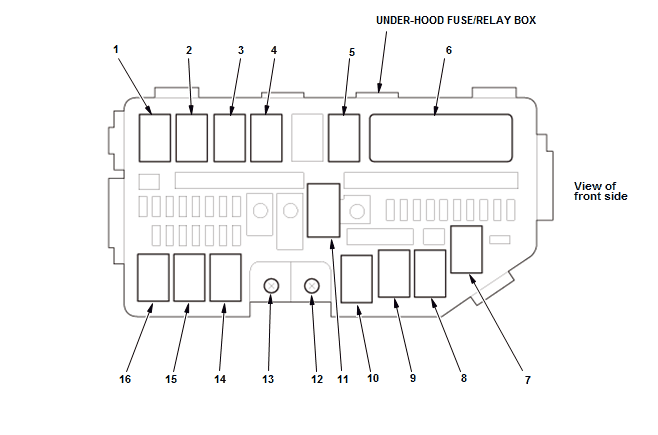

Under-Hood Fuse/Relay Box (A)
Under-Hood Fuse/Relay Box (A) Legend
| Socket | Ref | Terminals | Connects to | Notes |
|---|---|---|---|---|
| A/C compressor clutch relay | 5 | 4 | ||
| A/C condenser fan relay | 14 | 4 | ||
| Blower motor relay | 16 | 4 | ||
| Brake light relay | 1 | 5 | *1 | |
| ELD (electrical load detector) | 11 | 3 | Engine compartment wire harness | |
| Fan control relay | 3 | 5 | ||
| Fog light relay | 9 | 4 | ||
| PGM-FI subrelay | 8 | 4 | ||
| Horn relay | 2 | 4 | ||
| Ignition coil relay | 10 | 4 | ||
| Radiator fan relay | 4 | 4 | ||
| Rear window defogger relay | 7 | 4 | ||
| Relay circuit board | 6 | - - - | ||
| Relay circuit board connector A | 17 | 16 | Engine compartment wire harness | |
| Relay circuit board connector B | 18 | 10 | Engine compartment wire harness | |
| Starter cut relay 1 | 15 | 4 | *2 | |
| T1 | 13 | - - - | Starter cable | |
| T101 | 12 | - - - | Starter cable | |
| *1: With ACC*2: With keyless access system | ||||
