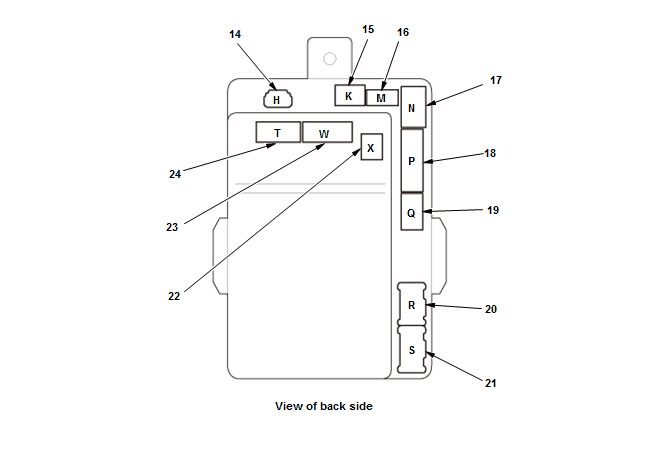

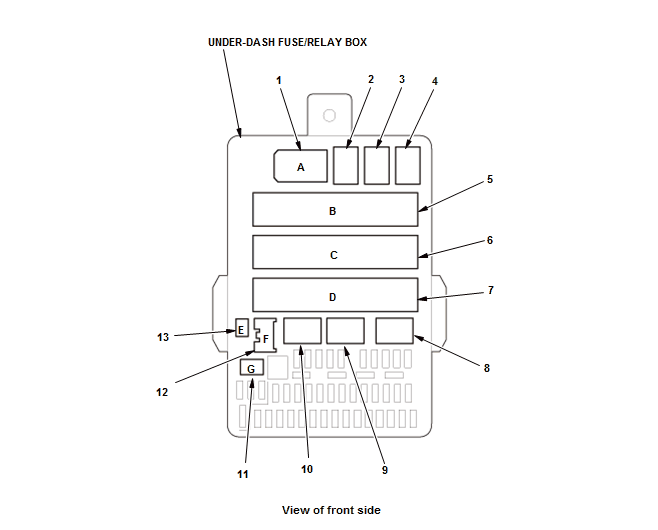

Under-Dash Fuse/Relay Box (B)
Under-Dash Fuse/Relay Box (B) Legend
| Socket | Ref | Terminals | Connects to | Notes |
|---|---|---|---|---|
| A | 1 | 5 | Dashboard wire harness | |
| B | 5 | 44 | Floor wire harness | |
| C | 6 | 38 | Engine compartment wire harness | |
| D | 7 | 32 | Engine compartment wire harness | |
| E (optional connector 2) | 13 | 4 | Not used | |
| ETCS control relay | 10 | 4 | ||
| F (optional connector 1) | 12 | 6 | Not used | |
| Front accessory power socket relay | 3 | 4 | ||
| G | 11 | 3 | Floor wire harness | |
| H | 14 | 4 | Dashboard wire harness | |
| K | 15 | 12 | Dashboard wire harness | |
| M | 16 | 7 | Dashboard wire harness | |
| N | 17 | 13 | Dashboard wire harness | |
| P | 18 | 20 | Dashboard wire harness | |
| PGM-FI main relay 1 | 9 | 4 | ||
| PGM-FI main relay 2 | 2 | 4 | ||
| Power window relay | 8 | 4 | ||
| Q | 19 | 16 | Dashboard wire harness | |
| R | 20 | 8 | Dashboard wire harness | |
| Rear window wiper main relay | 4 | 4 | *2 | |
| S | 21 | 10 | Dashboard wire harness | |
| Starter cut relay | 4 | 4 | *1 | |
| T | 24 | 20 | Dashboard wire harness | |
| W | 23 | 24 | Dashboard wire harness | |
| X | 22 | 10 | Dashboard wire harness | |
| *1: Without keyless access system *2: With keyless access system |
||||
