Relay and Control Unit Locations

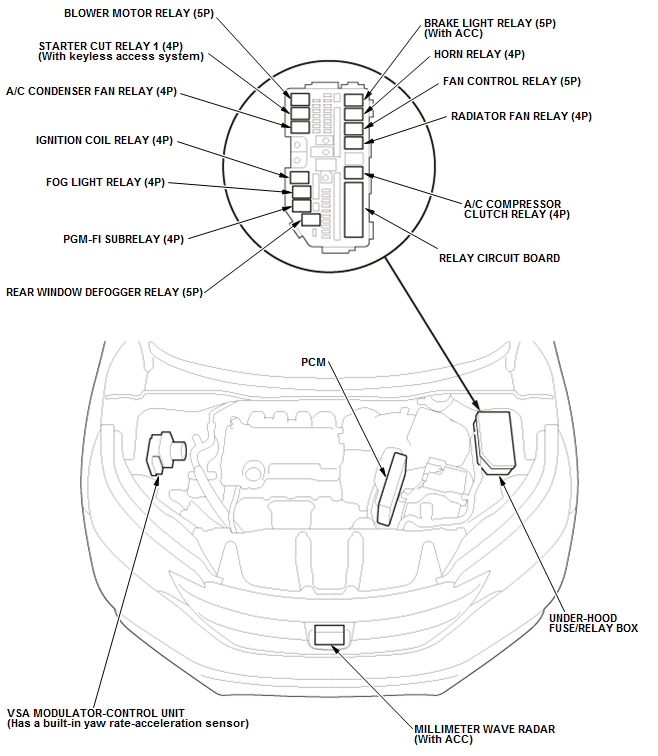

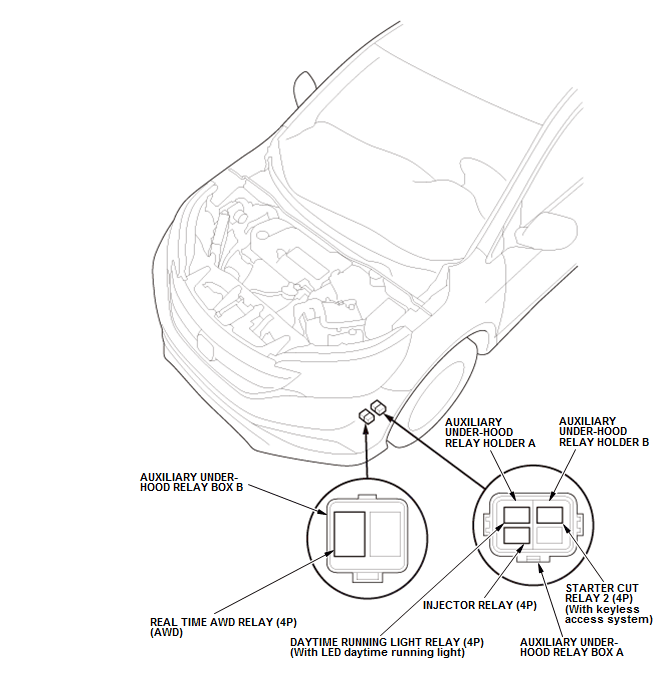

Engine Compartment - 1/2

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 2/2

Courtesy of HONDA, U.S.A., INC.

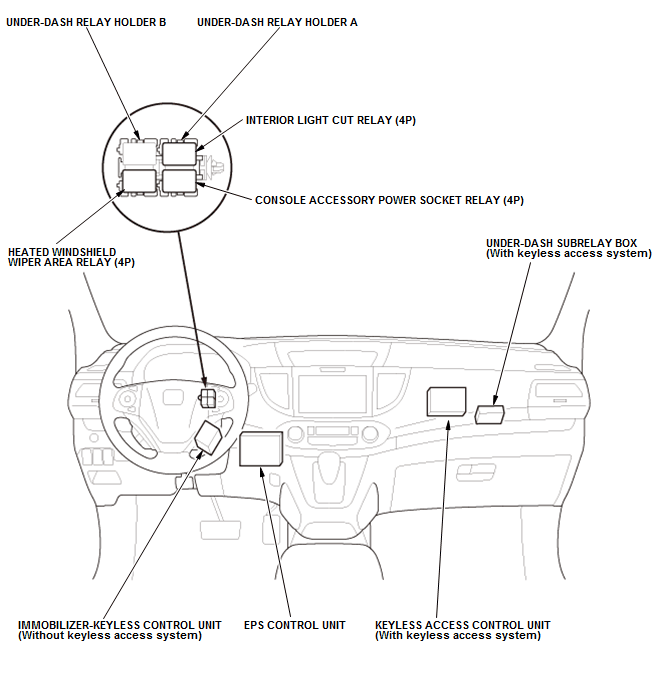

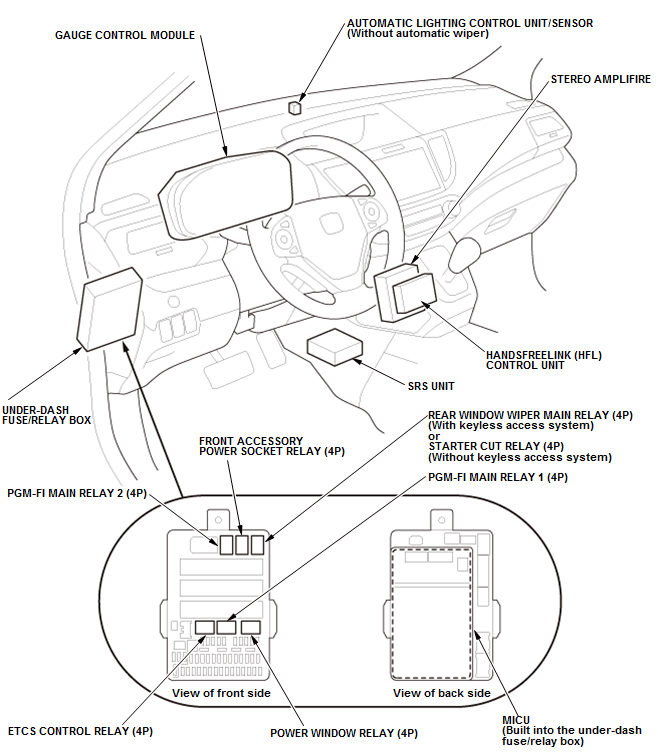

Dashboard - 1/3

Courtesy of HONDA, U.S.A., INC.

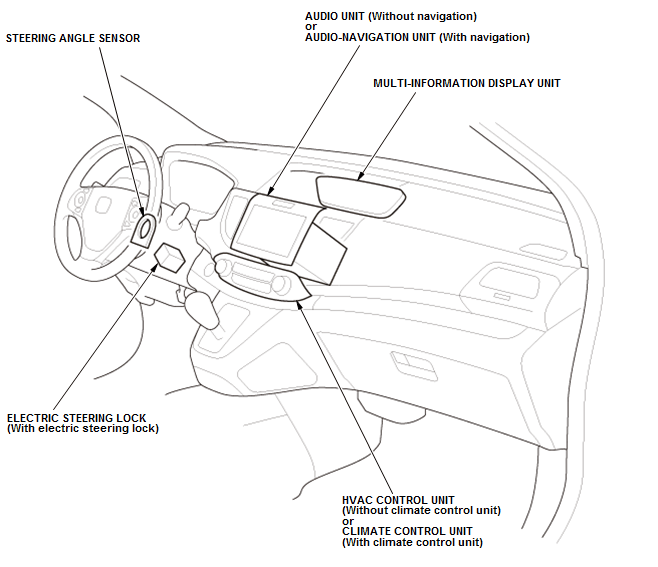

Dashboard - 2/3

Courtesy of HONDA, U.S.A., INC.

Dashboard - 3/3

Courtesy of HONDA, U.S.A., INC.

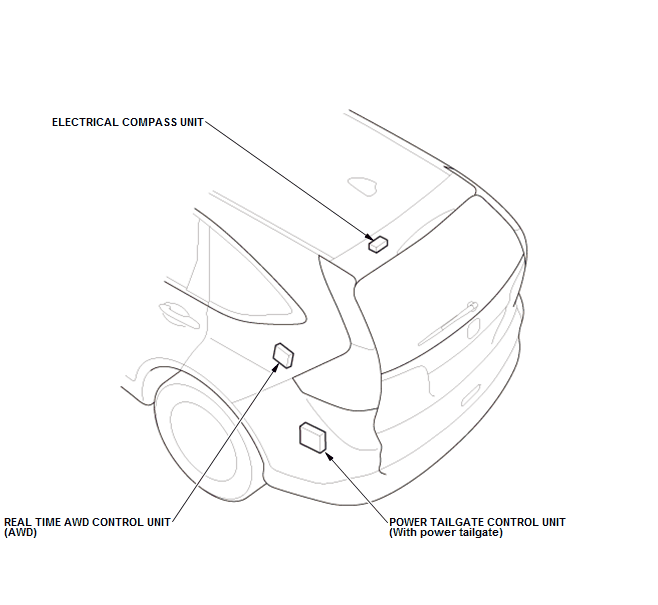

Rear

Courtesy of HONDA, U.S.A., INC.

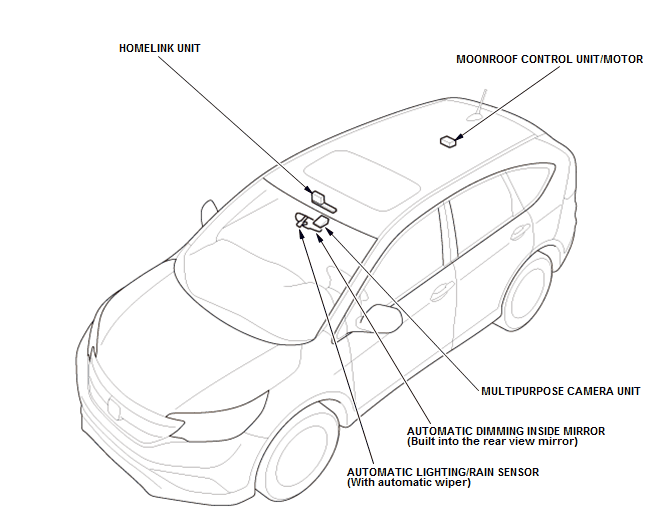

Roof

Courtesy of HONDA, U.S.A., INC.

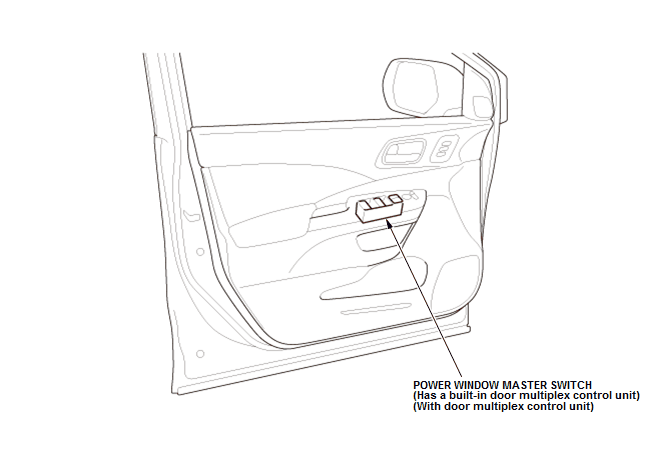

Door - 1/2Driver's

Courtesy of HONDA, U.S.A., INC.

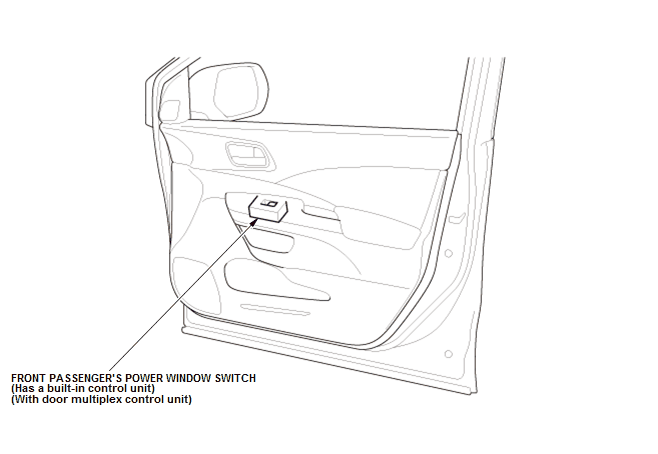

Door - 2/2Passenger's

Courtesy of HONDA, U.S.A., INC.

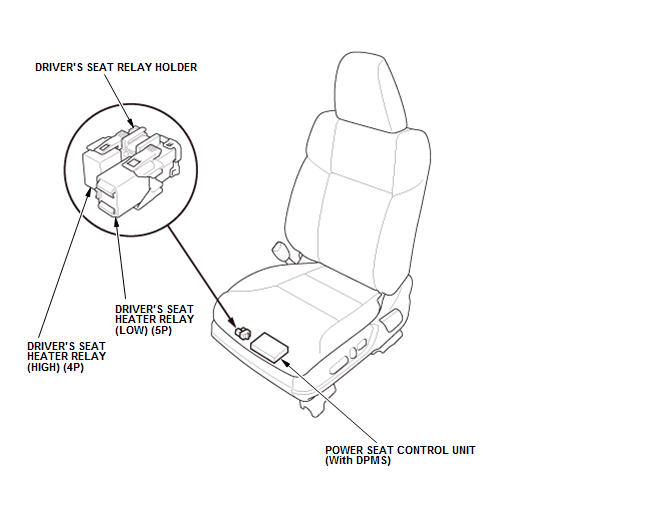

Seat - 1/2Driver's

Courtesy of HONDA, U.S.A., INC.

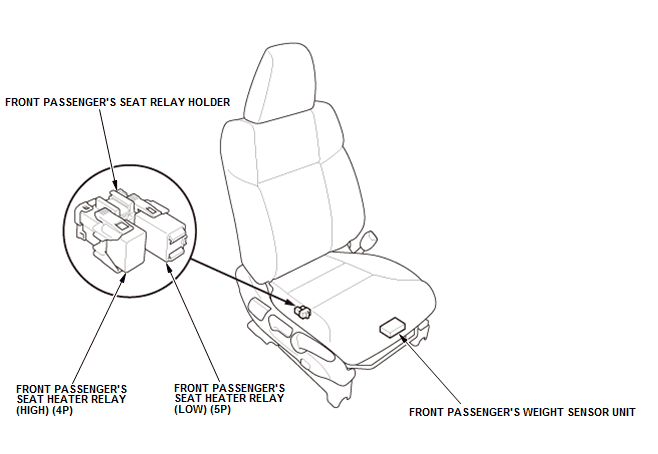

Seat - 2/2Passenger's

Courtesy of HONDA, U.S.A., INC.
