Removal & Installation

NOTE:

• SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
• Be sure to install the harness so it is not pinched or interferes with other parts.

• 1. Steering Wheel Assembly - Remove
• 2. Multi-Information Display Switch - Remove

  Courtesy of HONDA, U.S.A., INC.

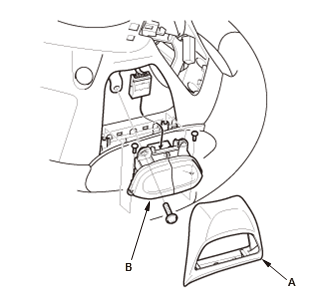

  1. Remove the cover (A)

  2. Remove the multi-information display switch (B)

  3. Disconnect the connector.

• 3. All Removed Parts - Install the parts in the reverse order of removal.
