Under-Dash Fuse/Relay Box Removal & Installation: Removal

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

Except Canada model

• 1. 12 Volt Battery Terminal - Disconnect
• 2. Driver's Dashboard Lower Cover - Remove
• 3. Under-Dash Fuse/Relay Box - Remove

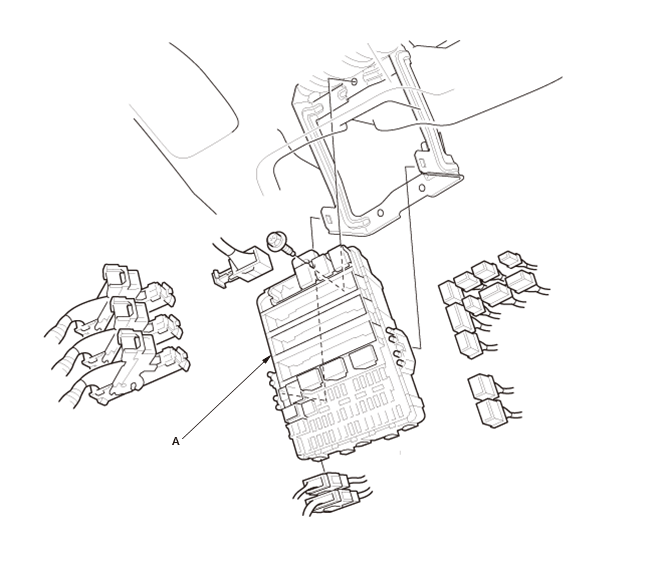

  1. Disconnect the front side connectors of the under-dash fuse/relay box (A).

  Courtesy of HONDA, U.S.A., INC.

  2. Detach the under-dash fuse/relay box

  3. Disconnect the back side connectors of the under-dash fuse/relay box

  4. Carefully remove the relays using a relay puller.

  NOTE:  Do not use pliers. Pliers will damage the relays, which could cause the engine to stall or not start or cause other functions to fail.

  Canada model

• 1. 12 Volt Battery Terminal - Disconnect
• 2. Driver's Dashboard Lower Cover - Remove
• 3. Under-Dash Fuse/Relay Box - Remove

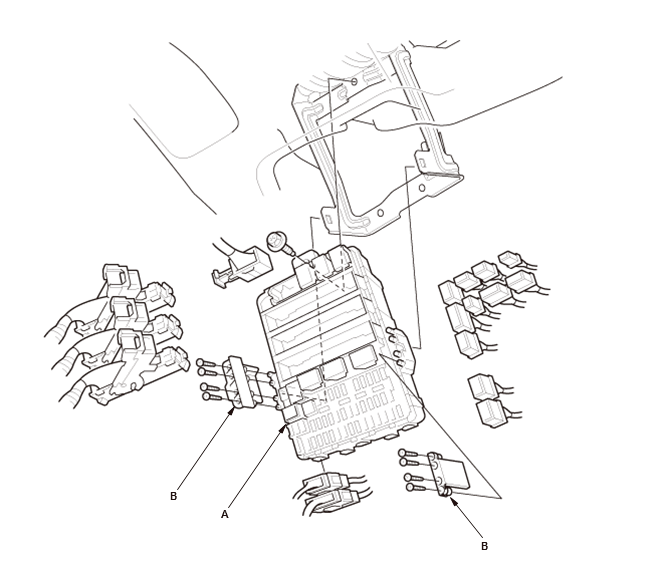

  1. Disconnect the front side connectors of the under-dash fuse/relay box (A).

  Courtesy of HONDA, U.S.A., INC.

  2. Remove the covers (B) from the under-dash fuse/relay box

  3. Detach the under-dash fuse/relay box

  4. Disconnect the back side connectors of the under-dash fuse/relay box

  5. Carefully remove the relays using a relay puller.

  NOTE:  Do not use pliers. Pliers will damage the relays, which could cause the engine to stall or not start or cause other functions to fail.
