Under-Hood Fuse/Relay Box Removal & Installation: Removal

NOTE:  The under-hood fuse/relay box is a part of the engine compartment wire harness, and it cannot be replaced by itself.

• 1. 12 Volt Battery Terminal - Disconnect
• 2. Relay Circuit Board - Remove
• 3. Under-Hood Fuse/Relay Box - Remove

  Courtesy of HONDA, U.S.A., INC.

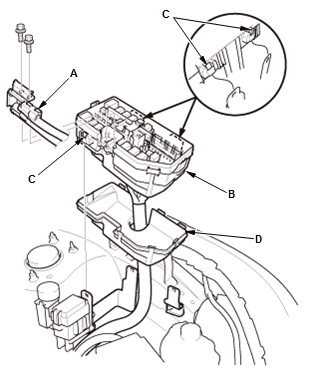

  1. Remove the alternator and the battery cable (A) from the under-hood fuse/relay box (B)

  2. Release the tabs (C), then detach the under-hood fuse/relay box

  3. Remove the bottom cover (D) from the under-hood fuse/relay box

  4. Carefully remove the relays using the special relay puller tool.

  NOTE:  Do not use pliers. Pliers will damage the relays, which could cause the engine to stall or not start or cause other functions to fail.
