Removal & Installation

1. Front Grille Bracket - Remove

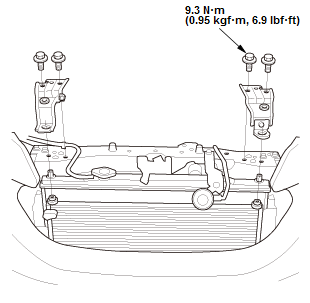

2. Millimeter Wave Radar - Remove (With ACC)
3. Radiator Upper Mount Bracket - Remove

Courtesy of HONDA, U.S.A., INC.
4. Horn (Low) and Bracket Assembly- Remove
5. Hood Latch - Remove
6. Connector (A/C Condenser Fan Motor and Radiator Fan Motor) - Disconnect

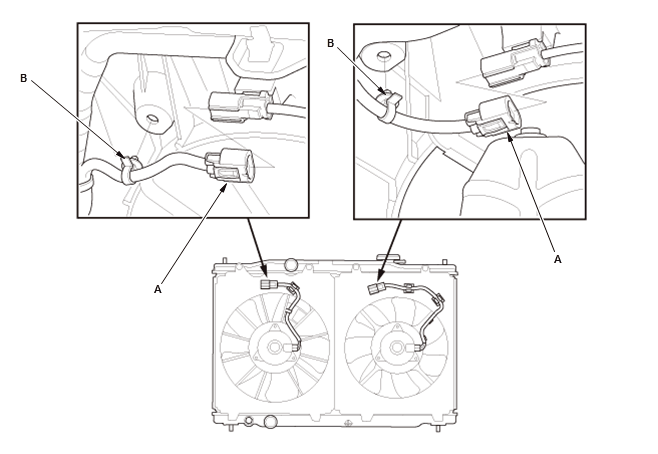

1. Disconnect the connectors (A).

Courtesy of HONDA, U.S.A., INC.

2. Remove the harness clamps (B).

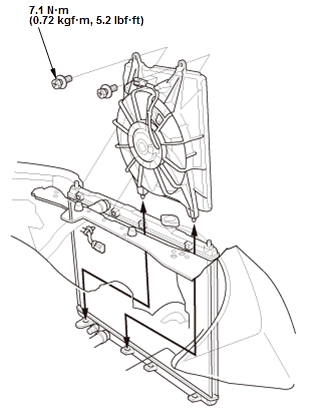

7. A/C Condenser Fan Shroud Assembly - Remove

Courtesy of HONDA, U.S.A., INC.

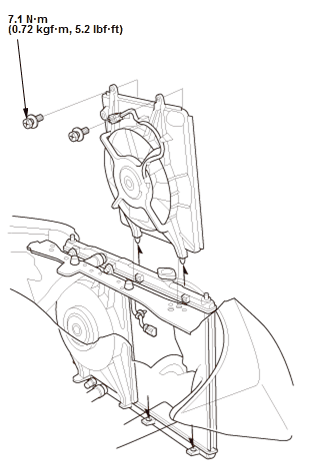

8. Radiator Fan Shroud Assembly - Remove

Courtesy of HONDA, U.S.A., INC.

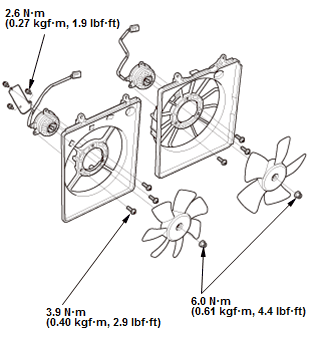

9. Fan Shroud - Disassemble

Courtesy of HONDA, U.S.A., INC.
10. All Removed Parts - Install the parts in the reverse order of removal.
