Removal & Installation

1. Engine Coolant - Drain
2. 12 Volt Battery - Remove
3. PCM with Bracket - Remove

Courtesy of HONDA, U.S.A., INC.

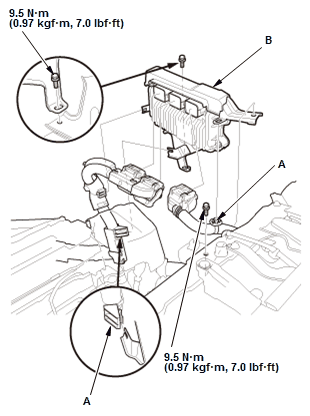

1. Remove the cover and disconnect the connectors .

2. Remove the harness clamps (A).

3. Remove the PCM with bracket (B).
4. ECT Sensor 1 - Remove - Refer to: ECT Sensor 1 Removal and Installation ECT Sensor 2 Removal and Installation
5. Thermostat - Remove
6. Hose - Disconnect

Courtesy of HONDA, U.S.A., INC.

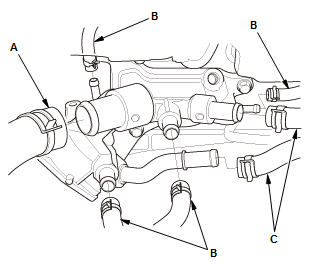

1. Disconnect the upper radiator hose (A), the water bypass hoses (B), and the heater hoses (C).
7. Thermostat Housing - Remove

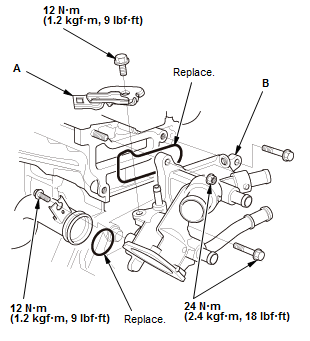

Fig 1: Thermostat Housing Replacement Components With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Remove the harness bracket (A) and the thermostat housing (B).
8. All Removed Parts - Install the parts in the reverse order of removal.
