Removal & Installation

1. Engine Coolant - Drain

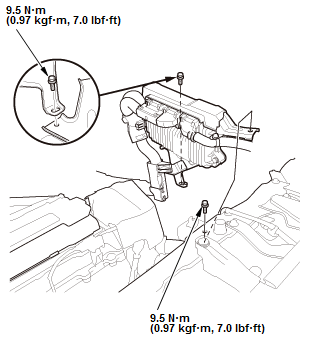

2. PCM with Bracket - Move

Courtesy of HONDA, U.S.A., INC.

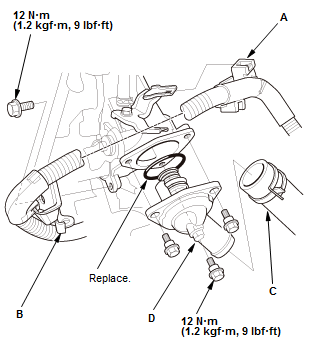

3. Thermostat - Remove

Courtesy of HONDA, U.S.A., INC.

1. Remove the harness holder (A) and the harness bracket (B)

2. Disconnect the lower radiator hose (C)

3. Remove the thermostat (D).
4. All Removed Parts - Install the parts in the reverse order of removal.
