Removal & Installation

1. Engine Coolant - Drain
2. Alternator - Remove
3. A/C Compressor - Move

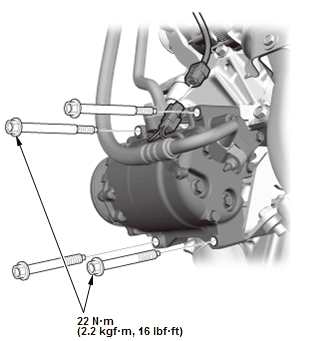

Fig 1: A/C Compressor With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

NOTE:
- Do not disconnect the A/C hoses.
- Do not bend the A/C hoses excessively.
- Hang the A/C compressor with a wire tie.
4. Thermostat Housing - Remove

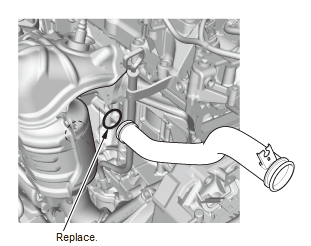

5. Connecting Pipe - Remove

Courtesy of HONDA, U.S.A., INC.
6. Water Pump - Remove
7. Water Passage - Remove

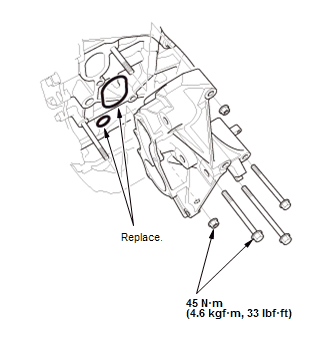

Fig 2: Water Passage With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
8. All Removed Parts - Install the parts in the reverse order of removal.
