Removal & Installation

1. Engine Coolant - Drain
2. Alternator - Remove

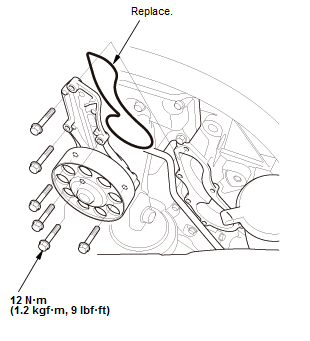

3. Water Pump - Remove

Courtesy of HONDA, U.S.A., INC.
4. All Removed Parts - Install the parts in the reverse order of removal.
NOTE: Inspect and clean the O-ring groove and the mating surface of the engine block.
