Removal & Installation

1. High Pressure Fuel Pump Cover - Remove

Courtesy of HONDA, U.S.A., INC.

1. Remove the high pressure fuel pump cover.

NOTE: Disconnect the PCM connectors as needed.

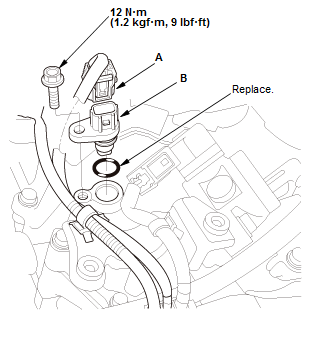

2. CMP Sensor B - Remove

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connector (A)

2. Remove CMP sensor B.
3. All Removed Parts - Install the parts in the reverse order of removal with a new O-ring.
4. CKP Pattern - Clear/Learn
