Removal & Installation

1. Vehicle - Lift
2. 12 Volt Battery - Remove

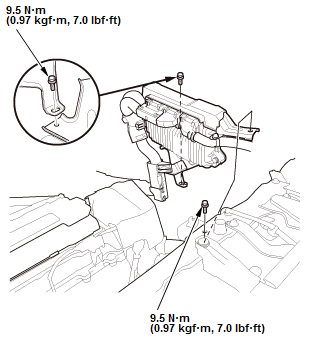

3. PCM with Bracket - Move

Courtesy of HONDA, U.S.A., INC.
4. Air Cleaner - Remove

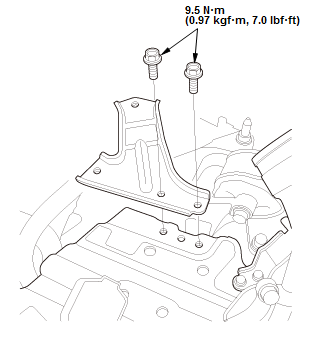

5. Air Cleaner Housing Bracket - Remove

Courtesy of HONDA, U.S.A., INC.
6. Transmission - Lift and support the transmission with a jack and a wood block under the transmission.

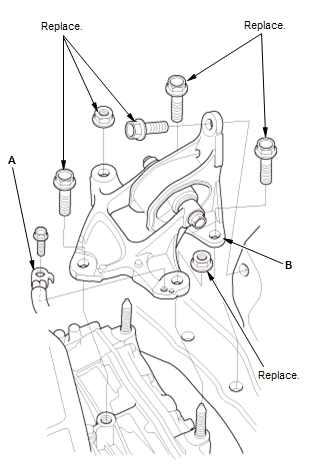

7. Transmission Mount - Remove

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the ground cable (A)

2. Remove the transmission mount (B).
8. All Removed Parts - Install the parts in the reverse order of removal.
NOTE: Do the mounts tightening procedure before tightening all of the mounts' bolts and nuts.
