Removal & Installation

1. Transmission Assembly - Remove
2. Drive Plate - Remove DRIVE PLATE REMOVAL AND INSTALLATION
3. Oil/Air Separator - Remove

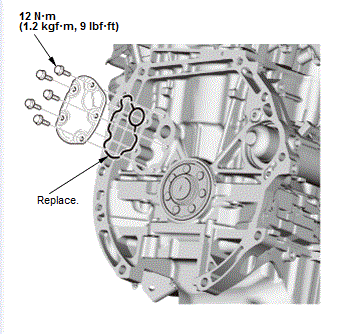

Fig 1: Oil/Air Separator, Bolts & Gasket

G00562075

Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. All Removed Parts - Install the parts in the reverse order of removal.
