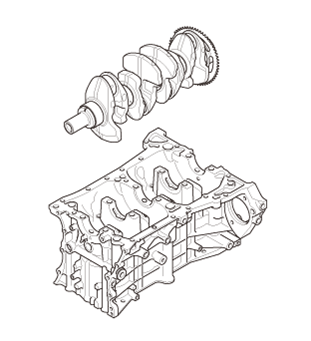

Crankshaft And CKP Pulse Plate Removal, Installation, & Inspection: Removal

1. Engine Assembly - Remove
2. Transmission Assembly - Remove
3. Drive Plate Assembly - Remove
4. Cylinder Head - Remove
5. Transmission End Crankshaft Oil Seal - Remove - Refer to: Transmission End Crankshaft Oil Seal Replacement - In Car Pulley End Crankshaft Oil Seal Replacement - In Car
6. Intermediate Shaft Assembly - Remove
7. Oil Pan - Remove
8. Oil Pump - Remove

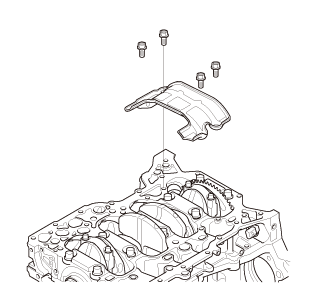

9. Baffle Plate - Remove

Courtesy of HONDA, U.S.A., INC.

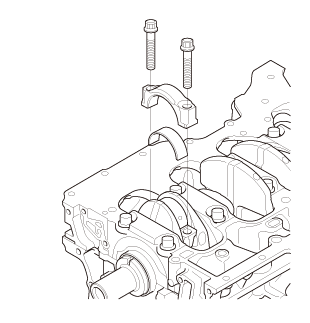

10. Connecting Rod Cap and Bearing Half - Remove

Courtesy of HONDA, U.S.A., INC.

NOTE: Keep all connecting rod caps/bearing halves in order.

11. Lower Block - Remove

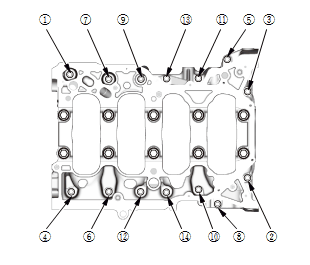

Fig 1: Lower Block Bolt Loosening Sequence

Courtesy of HONDA, U.S.A., INC.

1. Remove the 8 mm bolts.

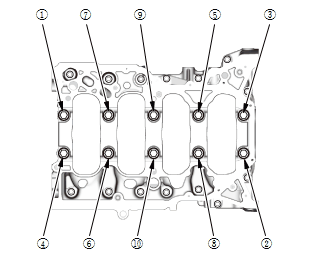

Fig 2: Bearing Cap Bolt Loosening Sequence

Courtesy of HONDA, U.S.A., INC.

2. Remove the bearing cap bolts. To prevent warpage, loosen the bolts in sequence 1/3 turn at a time; repeat the sequence until all bolts are loosened.

Courtesy of HONDA, U.S.A., INC.

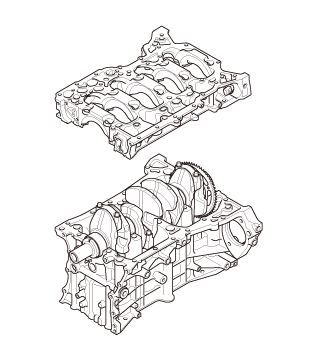

3. Remove the lower block and the bearings. Keep all the bearings in order.

12. Crankshaft - Remove

Courtesy of HONDA, U.S.A., INC.

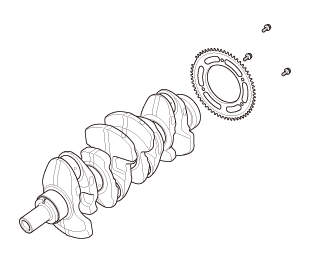

13. CKP Pulse Plate - Remove

Courtesy of HONDA, U.S.A., INC.
