Removal & Installation

1. Left Middle Floor Undercover - Remove - Refer to: Middle Floor Undercover Removal and Installation Rear Floor Undercover Removal and Installation Front Floor Undercover Removal and Installation
2. EVAP Canister - Remove

Courtesy of HONDA, U.S.A., INC.

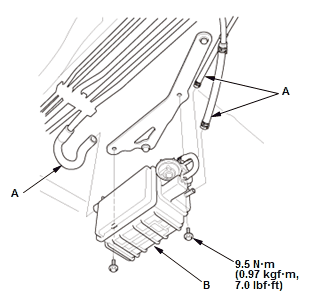

1. Disconnect the hoses (A)

2. Remove the EVAP canister (B).
3. EVAP Canister Two Way Valve - Remove.
4. All Removed Parts - Install the parts in the reverse order of removal.
