Home >> Honda >> 2016 >> CR-V EX, Eng CD K24W9, FWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Integrated Control Systems - Testing & Troubleshooting >> Circuit Diagram >> Multiplex Integrated Control System Circuit Diagram

Multiplex Integrated Control System Circuit Diagram

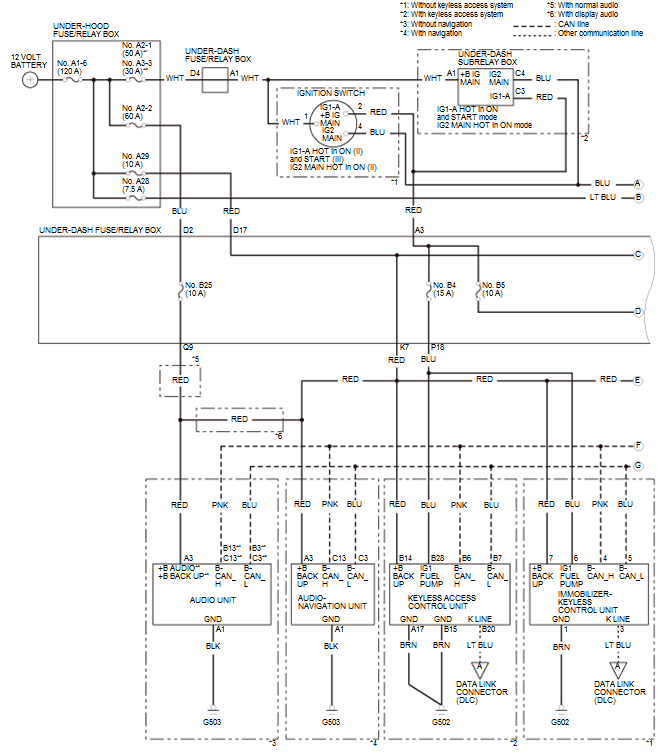

GHH50496

Courtesy of HONDA, U.S.A., INC.

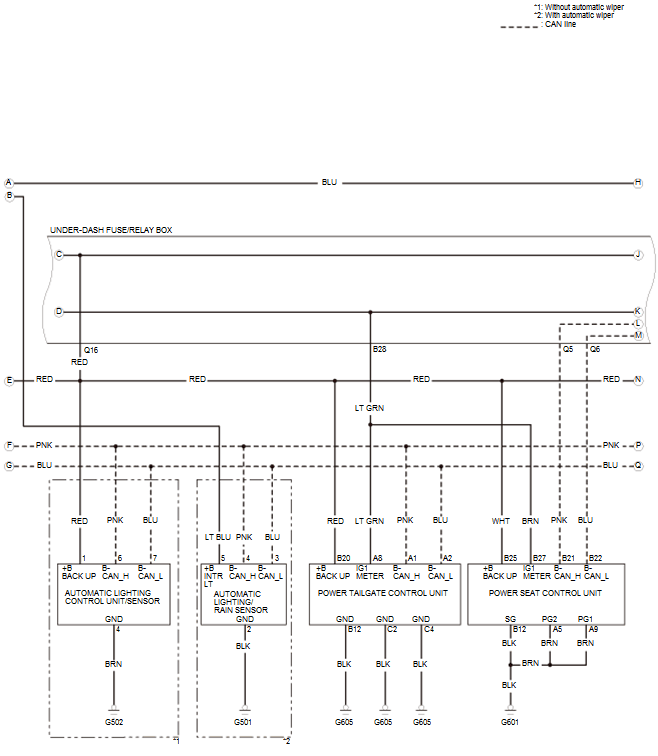

GHH50497

Courtesy of HONDA, U.S.A., INC.

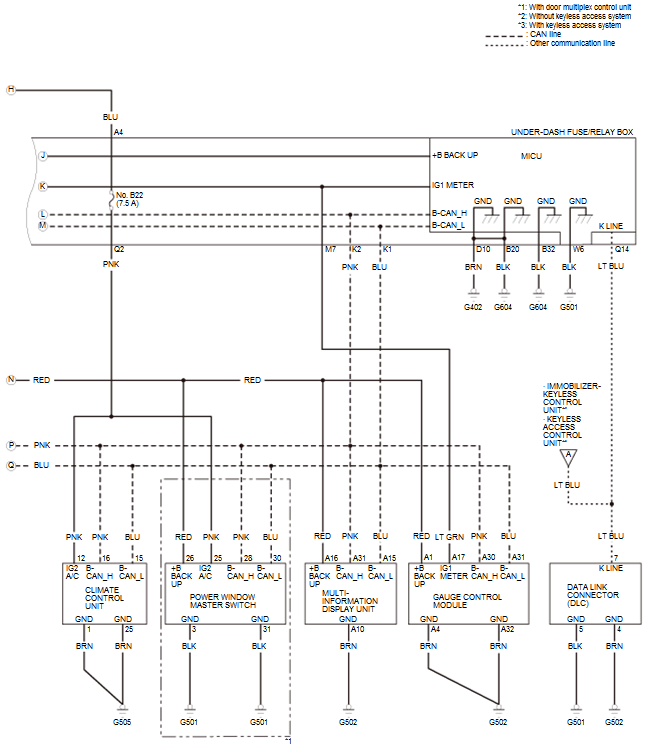

GHH50498

Courtesy of HONDA, U.S.A., INC.
