Multiplex Integrated Control System Component Location Index

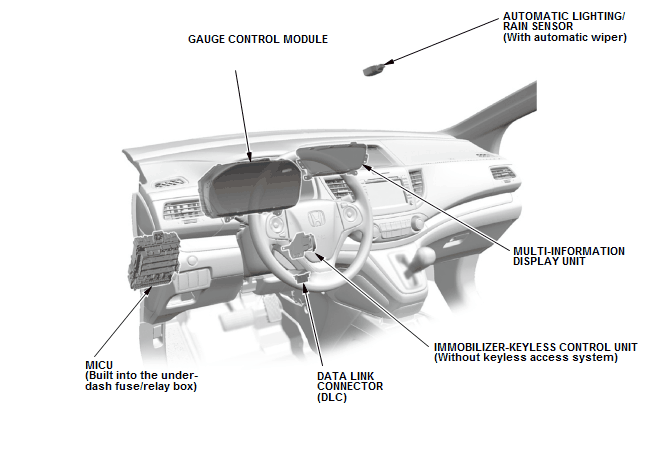

GHH50504Courtesy of HONDA, U.S.A., INC.

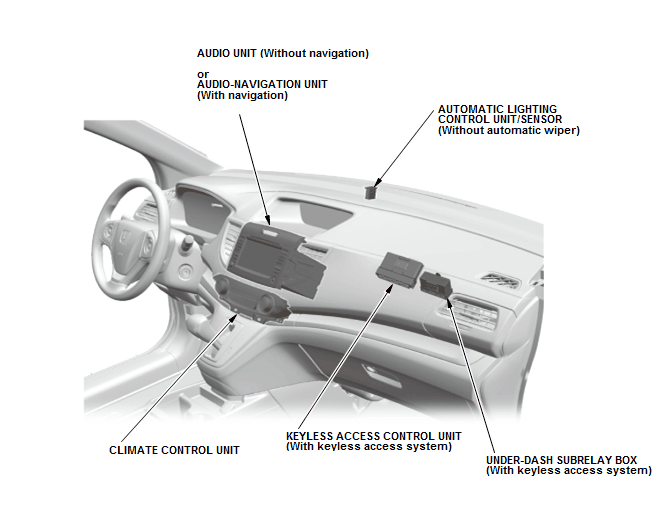

GHH50505Courtesy of HONDA, U.S.A., INC.

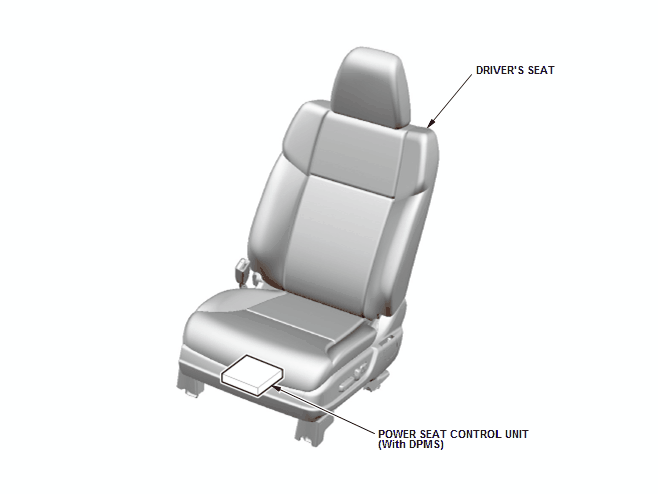

GHH50506Courtesy of HONDA, U.S.A., INC.

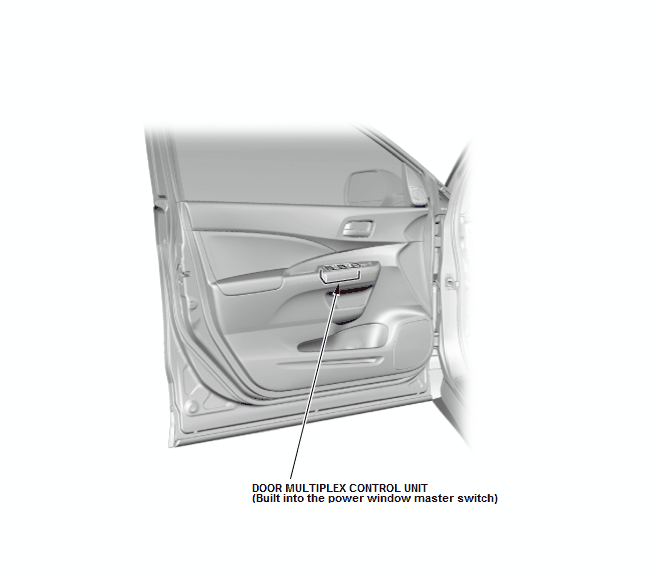

GHH50507Courtesy of HONDA, U.S.A., INC.

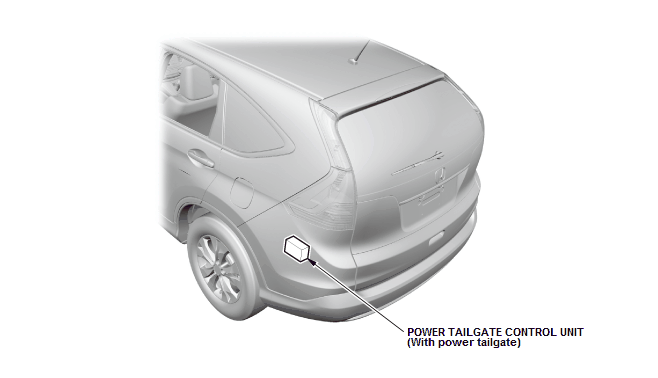

GHH50508Courtesy of HONDA, U.S.A., INC.
