Real Time AWD Control Unit Removal & Installation(AWD): Installation

1. Real Time AWD Control Unit - Install

Courtesy of HONDA, U.S.A., INC.

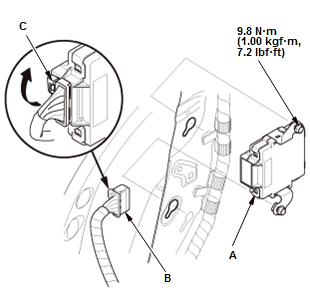

1. Install the real time AWD control unit (A)

2. Align the connecting surface of the connector (B)

3. Pulling up the lever (C) of the connector, then confirm the connector is fully seated.
2. Rear Left Side Trim Panel - Install - Refer to: Interior Trim Removal and Installation - Pillar Areas Interior Trim Removal and Installation - Tailgate Areas Interior Trim Removal and Installation - Cargo Areas Interior Trim Removal and Installation - Rear Side Area Interior Trim Removal and Installation - Door Areas
3. Real Time AWD Control Unit - Initialization
