Removal & Installation

1. Splash Shield - Remove
1. Detach the splash shield as needed.
2. Front Inner Fender - Remove
1. Detach the front inner fender as needed. - Refer to: Rear Inner Fender Removal and Installation Front Inner Fender Removal and Installation
3. Windshield/Rear Window Washer Motor - Remove

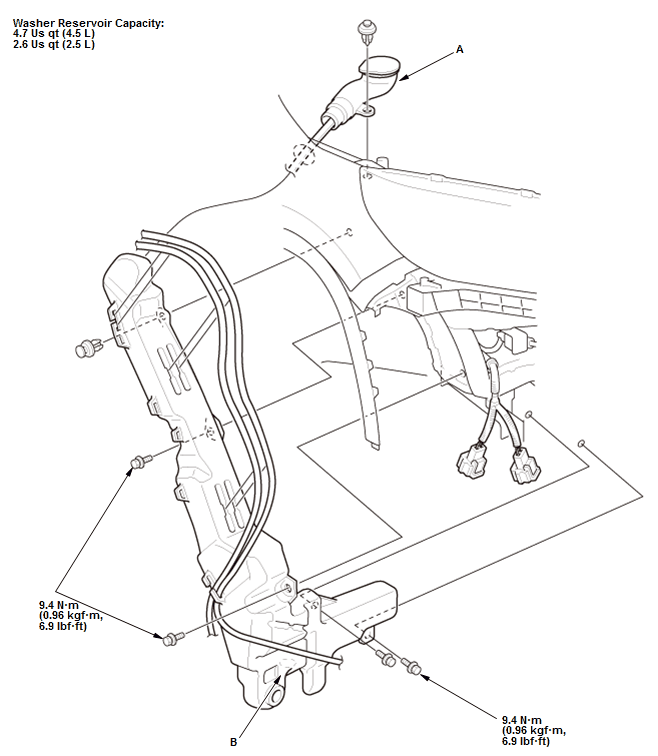

4. Washer Reservoir - Remove
1. Remove the washer filler neck (A).

Courtesy of HONDA, U.S.A., INC.

2. Remove the washer reservoir (B).
5. All Removed Parts - Install the parts in the reverse order of removal.
