Steering Gearbox Mount Cushion Replacement: Installation

NOTE:  Do not allow dust, dirt, or other foreign materials to enter the steering gearbox.

1. 1. Steering Gearbox Mount Cushion - Install

   Courtesy of HONDA, U.S.A., INC.

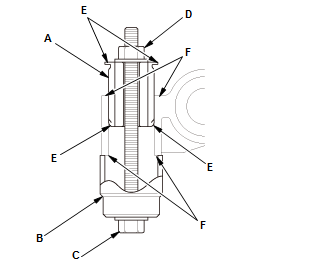

   1. Apply a mild soap and water solution to the new gearbox mount cushion surface (A), then place the mount cushion on the gearbox mounting cushion hole

   2. Position a 41 mm socket (B) on the flange part of the gearbox housing with a washer, a flange bolt (C), and a nut (D) as shown

   3. Install the gearbox mount cushion by tightening the nut until the mount cushion edges (E) properly fits on the gearbox flange surfaces (F).

2. 2. Steering Gearbox - Install
