Steering Gearbox Removal & Installation: Installation

NOTE: Using clean solvent and a brush, wash any oil and dirt off the end of the steering gearbox. Avoid any electrical parts. Blow dry with compressed air.

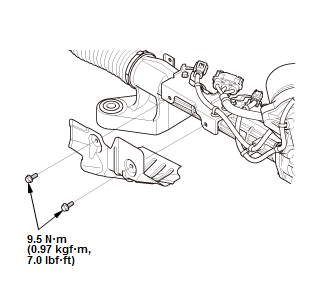

1. Power Steering Heat Shield - Remove

Courtesy of HONDA, U.S.A., INC.

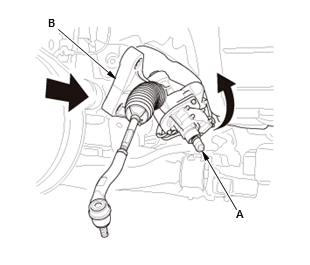

2. Steering Gearbox - Install

Courtesy of HONDA, U.S.A., INC.

1. Apply vinyl tape to the splines on the pinion shaft (A)

2. Slide the steering gearbox (B) between the front subframe and body.

NOTE: Be careful not to damage the steering gearbox boot and the pinion shaft.

3. Install the steering gearbox until the steering gearbox is in position.

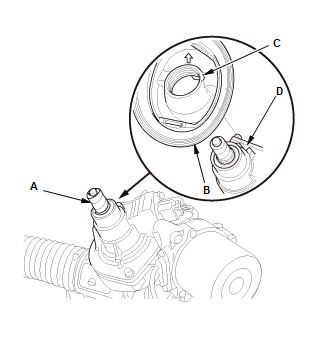

3. Pinion Shaft Grommet - Install

Courtesy of HONDA, U.S.A., INC.

1. Remove the vinyl tape (A) from pinion shaft

2. Install the pinion shaft grommet (B)

3. Align the lug portion (C) in the pinion shaft grommet with the cutout portion (D) on the steering gearbox.

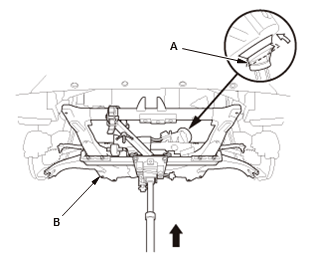

4. Front Subframe - Move

Courtesy of HONDA, U.S.A., INC.

1. Turn the lip (A) of the pinion shaft grommet

2. Raise the front subframe (B) up to the body, then restore the pinion shaft grommet back to proper position.

NOTE: Be sure that the pinion shaft grommet is secure in place. Make sure the lip of the pinion shaft grommet is not turned up. Incorrect installation can cause leakage of water and mud, or noise.
5. Front Subframe Mounting Bolt - Loosely Install

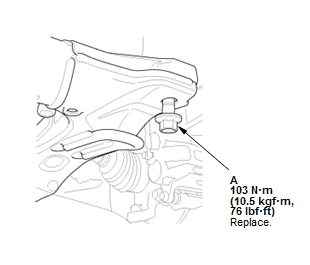

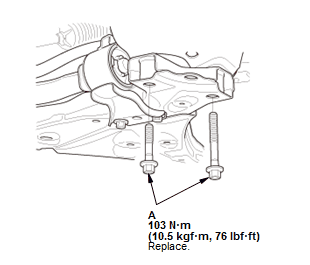

Fig 1: Front Subframe Mounting Bolt With Torque Specifications (1 of 2)
Courtesy of HONDA, U.S.A., INC.

Fig 2: Front Subframe Mounting Bolt With Torque Specifications (2 of 2)
Courtesy of HONDA, U.S.A., INC.

1. Loosely install a new front subframe mounting bolts (A) on both sides.

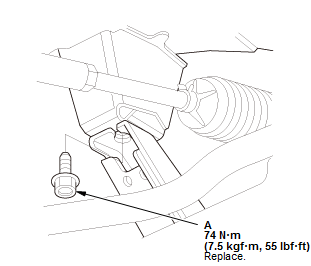

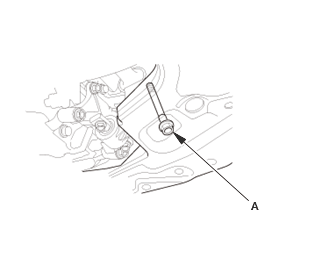

Fig 3: Mid Mounting Bolt With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

2. Loosely install a new mid mounting bolt (A) on both sides.
6. Front Subframe - Tighten

7. Lower Torque Rod - Connect

Courtesy of HONDA, U.S.A., INC.

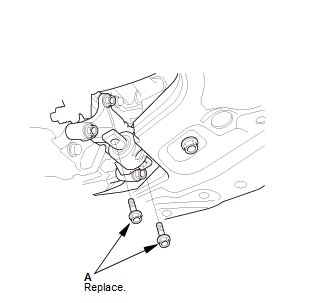

1. Loosely install new lower torque rod mounting bolts (A).

Courtesy of HONDA, U.S.A., INC.

2. Loosen the lower torque rod mounting bolt (A) to the subframe side.

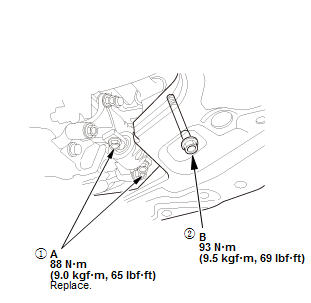

Fig 4: Lower Torque Rod Mounting Bolts With Torque Specifications & Tightening Sequence

Courtesy of HONDA, U.S.A., INC.

3. Tighten the lower torque rod mounting bolts (A) to the oil pan side

4. Tighten the lower torque rod mounting bolt (B) to the subframe side.

8. Steering Gearbox Stiffener - Install
Left side

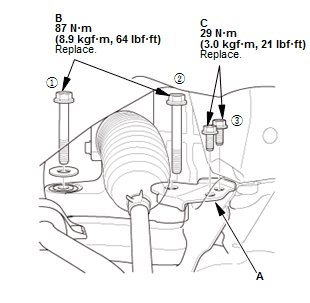

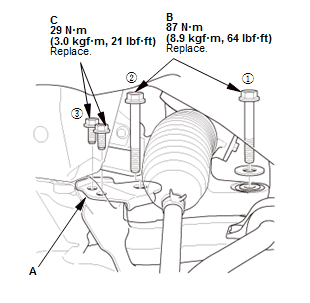

Fig 5: Steering Gearbox Stiffeners & Steering Gearbox Mounting Bolts (Left Side) With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

Right side

Fig 6: Steering Gearbox Stiffeners & Steering Gearbox Mounting Bolts (Right Side) With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Install the steering gearbox stiffeners (A)

2. Loosely tighten new steering gearbox mounting bolts on both sides (B)

3. Loosely tighten new stiffener mounting bolts (C)

4. Tighten the steering gearbox mounting bolts and the stiffener mounting bolts to the specified torque in the sequence shown.

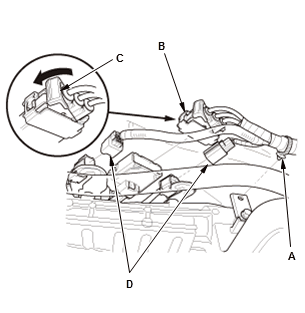

9. Connectors - Connect

Courtesy of HONDA, U.S.A., INC.

1. Install the harness clip (A)

2. Connect the connector (B), then pulling down the lever (C), and confirm the connector is fully seated

3. Connect the connectors (D).
10.Exhaust Pipe A and Under-Floor TWC - Install
11.No. 1 Propeller Shaft - Connect
12.Front Floor Undercover - Remove - Refer to: Middle Floor Undercover Removal and Installation Rear Floor Undercover Removal and Installation Front Floor Undercover Removal and Installation
13.Splash Shield - Install
14.Stabilizer Link - connect
15. Tie-Rod End Ball Joint - Connect

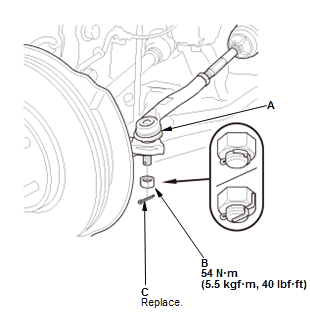

Fig 7: Tie-Rod End Ball Joint With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Wipe off any grease contamination from the ball joint tapered section and threads

2. Connect the tie-rod ball joint (A) to the knuckle

3. Install the nut (B)

4. Install a new cotter pin (C).

NOTE: Bend the cotter pin as shown.

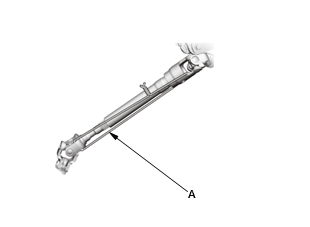

16. Steering Column Lower Slide Shaft - Release

Courtesy of HONDA, U.S.A., INC.

1. Cut the wire (A).
17. Steering Wheel - Release
18. Steering Joint - Connect

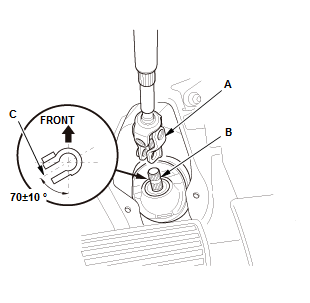

Courtesy of HONDA, U.S.A., INC.

1. Set the rack in the straight ahead driving position

2. Slip the lower end of the steering joint (A) onto the pinion shaft (B).

NOTE: Position the steering column by aligning the gap (C) within the angle.

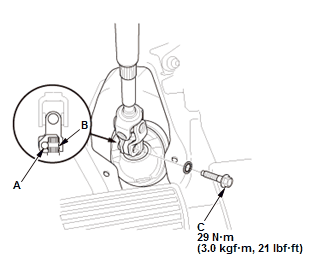

Fig 8: Steering Joint With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

3. Align the bolt hole (A) on the steering joint with the groove (B) around the pinion shaft

4. Loosely install the steering joint bolt (C)

5. Be sure that the joint bolt is secure in the groove in the pinion shaft

6. Pull on the steering joint to make sure that the steering joint is fully seated

7. Tighten the steering joint bolt to the specified torque.

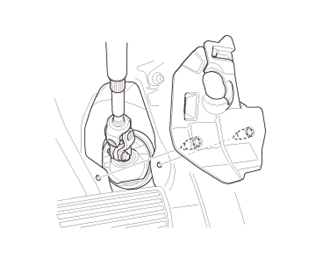

19. Steering Joint Cover - Install

Courtesy of HONDA, U.S.A., INC.
20.Front Wheel - Install
21.12 Volt Battery Terminal - Reconnect

22. Steering Gearbox - After Install Symptom Check

1. With the tires raised off the ground, check for the following symptoms by turning the steering wheel fully to the right and left several times.

Symptom	Probable cause
Rubbing sound coming from the lower steering column area.	Steering column joint is contacting the cover.
Noise from the lower steering column area, or a rough feeling during steering.	Poor engagement of the pinion shaft serrations.
Noise from around the steering wheel during steering.	Poor engagement of the SRS cable reel with the steering wheel, or a damaged cable reel.

23. Steering Gearbox After Install - Check
1. After installation, check these items:
- Start the engine, allow it to idle, and turn the steering wheel from lock to lock several times.
- Check that the EPS indicator does not come on.
- Check the steering wheel spoke angle. If steering spoke angles to the right and left are not equal (steering wheel and rack are not centered), correct the engagement of the joint/pinion shaft splines.
24.Wheel-Alignment - Check
25.VSA Sensor Neutral Position - Memorize
26.Steering Angle Sensor Neutral Position - Clear
