Steering Lock Removal & Installation: Removal

SRS components are located in this area. Review the SRS component locations , and the precautions and procedures before doing repairs or service.

1. 1. Steering Column - Remove
2. 2. Immobilizer-Keyless Control Unit - Remove (Without Keyless Access system)
3. 3. Steering Lock - Remove

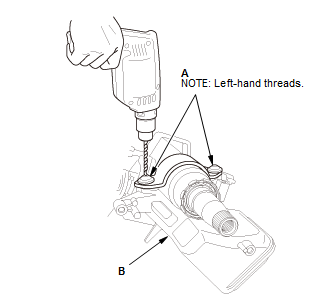

   Without keyless access

   Courtesy of HONDA, U.S.A., INC.

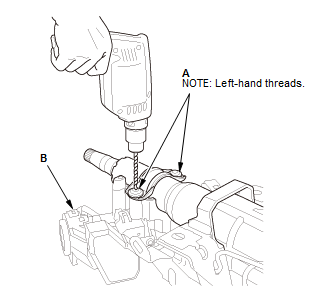

   With keyless access

   Courtesy of HONDA, U.S.A., INC.

   1. Center-punch both of the two shear bolts (A)

   2. Drill their heads off with a 5.0 mm (0.20 in) drill bit. Be careful not to damage the steering lock when removing the shear bolts.

   NOTE:  The shear bolts have left-hand threads.

   3. Remove the steering lock (B).
