Steering Tie-Rod End Ball Joint Boot Replacement: Removal

Courtesy of HONDA, U.S.A., INC.

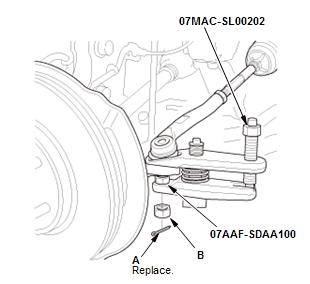

1. Remove the cotter pin (A).

2. Remove the nut (B).

3. Disconnect the tie-rod end ball joint from the ball joint thread protector and the knuckle using the ball joint remover .

NOTE:  Be careful not to damage the ball joint boot when installing the ball joint remover.

Courtesy of HONDA, U.S.A., INC.

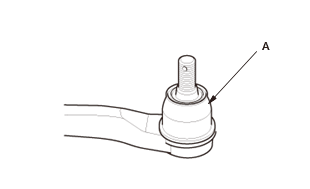

1. Remove the ball joint boot (A) from the tie-rod end

2. Wipe the old grease off the ball pin.
