Replacement Procedure

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

• 1. Both Inner Vents - Remove
• 2. Audio Unit - Remove (With Audio Unit) - Refer to: Audio Unit Removal and Installation (With Display Audio)Audio Unit Removal and Installation (With Normal Audio)
• 3. Audio-Navigation Unit - Remove (With Audio-Navigation Unit)
• 4. Center Display Visor - Remove
• 5. Multi-Information Display Unit - Remove
• 6. GPS Antenna - Remove (With Audio-Navigation Unit)
• 7. Sunlight Sensor - Remove (For Some Models)
• 8. Gauge Control Module - Remove
• 9. Passenger's Dashboard Trim Panel - Remove
• 10.Climate Control Unit - Remove (With Auto A/C)
• 11.HVAC Control Unit - Remove (With Manual A/C)
• 12.Both Outer Vents - Remove
• 13.Front Passenger's Airbag - Remove
• 14.Glove Box Striker - Remove
• 15.Steering Hanger Beam - Remove

  Courtesy of HONDA, U.S.A., INC.

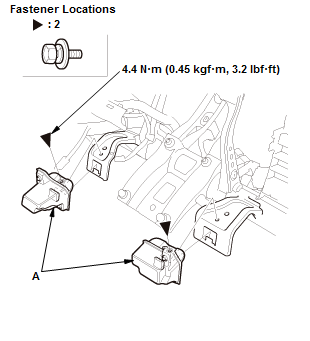

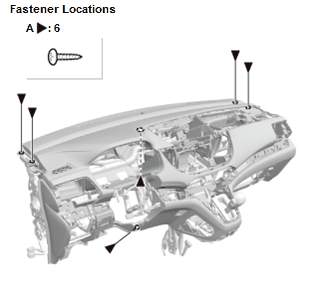

  1. Remove the bolts (A).

  Courtesy of HONDA, U.S.A., INC.

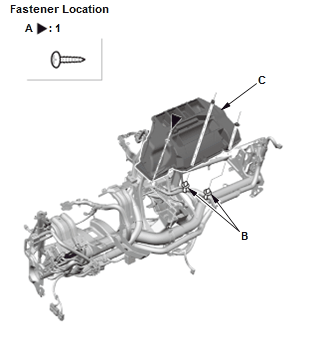

  2. Remove the screws (A).

  Left side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Right side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

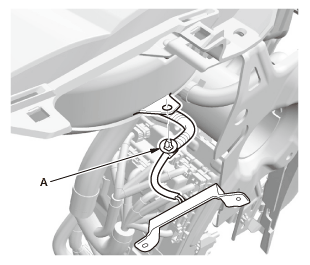

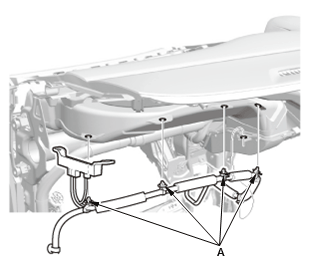

  3. Detach the harness clip(s) (A).

  Courtesy of HONDA, U.S.A., INC.

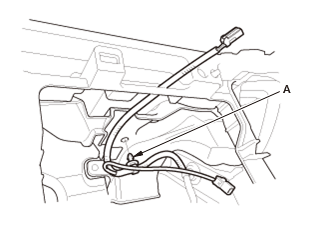

  4. Detach the harness clip (A).

  Courtesy of HONDA, U.S.A., INC.

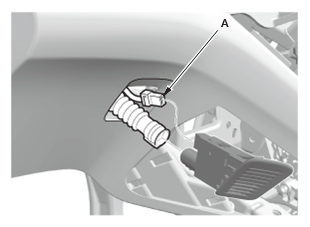

  5. With climate control: Disconnect the connector (A).

  Courtesy of HONDA, U.S.A., INC.

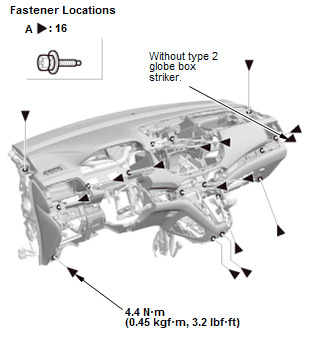

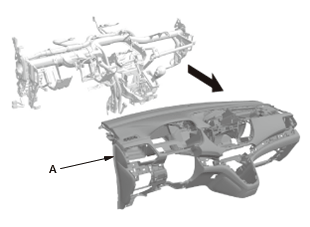

  6. Remove the dashboard (A).

• 16.Center Joint Duct - Remove

  Courtesy of HONDA, U.S.A., INC.

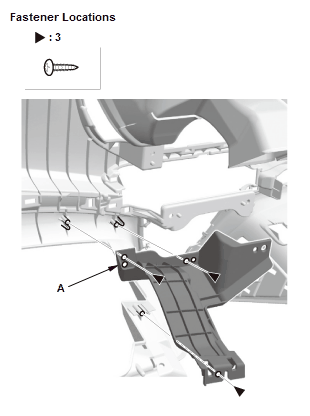

  1. If necessary, remove the screw (A), and detach the harness clips (B)

  2. Remove the center joint duct (C).

• 17.Glove Box Cover - Remove

  Left side

  Courtesy of HONDA, U.S.A., INC.

  Right side

  Courtesy of HONDA, U.S.A., INC.

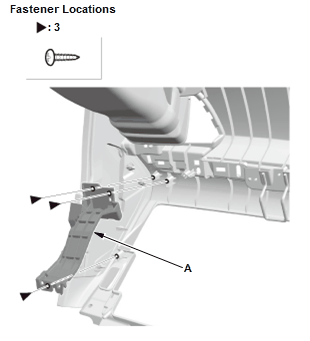

  1. If necessary, remove the glove box covers (A).

• 18.Knee Pad - Remove

  Courtesy of HONDA, U.S.A., INC.

  1. If necessary, remove the knee pads (A).

• 19.All Removed Parts - Install - Install the parts in the reverse order of removal.
