Replacement Procedure

NOTE:  For these operations, refer to the complete procedure as needed.

• Rack end removal and installation .
• Rack guide adjustment
• If the rack guide is removed, rack guide adjustment is necessary .
• Tie-rod end ball joint boot replacement .
• EPS motor removal and installation .

• 1. Steering Gearbox - Exploded View

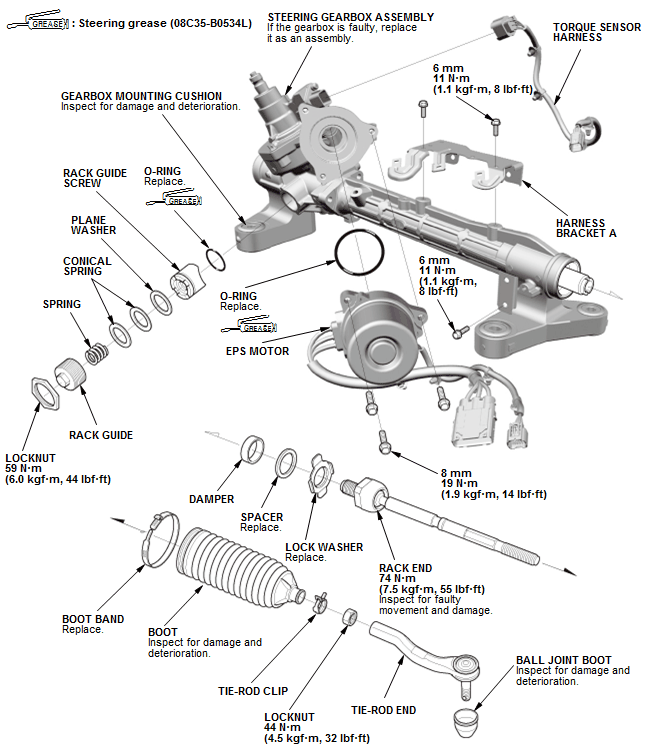

  Exploded view

Fig 1: Steering Gearbox - Exploded View With Torque Specifications

Courtesy of HONDA, U.S.A., INC.
