System Protect Function (High Temperature)

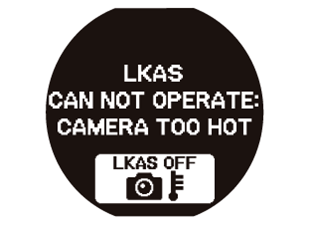

If the following icon appears on the MID, the LKAS stops working. The multipurpose camera unit temperature is too hot. When the multipurpose camera unit temperature cools down to its proper operating temperature, the indicator on the MID turns off, and the LKAS automatically resumes operation.

When the multipurpose camera unit temperature decrease, the indicator on the MID goes off and the LKAS automatically returns to ON.

GHH51592Courtesy of HONDA, U.S.A., INC.
