Front Knuckle/Hub/Wheel Bearing Replacement: Replacement

NOTE:  Refer to the Exploded View as needed during the following procedures.

• 1. Vehicle - Lift
• 2. Front Wheel - Remove
• 3. Front Brake Caliper - Remove

  Courtesy of HONDA, U.S.A., INC.

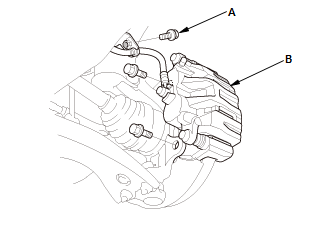

  1. Remove the brake hose mounting bolt (A)

  2. Remove the caliper assembly (B).

  NOTE:

  • To prevent damage to the caliper assembly or brake hose, use a short piece of wire to hang the caliper assembly from the undercarriage.
  • Do not twist the brake hose excessively.
• 4. Front Wheel Speed Sensor - Remove

  Courtesy of HONDA, U.S.A., INC.

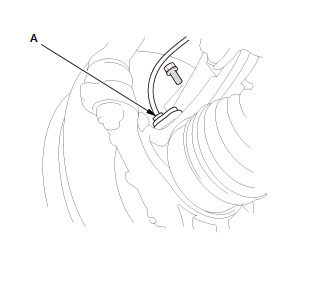

  1. Remove the wheel speed sensor (A).

  NOTE:  Do not disconnect the wheel speed sensor connector.

• 5. Driveshaft Spindle Nut - Remove

  Courtesy of HONDA, U.S.A., INC.

  1. Pry up the stake (A) on the spindle nut (B)

  2. Remove the spindle nut.

• 6. Front Brake Disc - Remove
• 7. Hub for Damage and Cracks - Check
• 8. Tie-Rod End Ball Joint - Disconnect

  Courtesy of HONDA, U.S.A., INC.

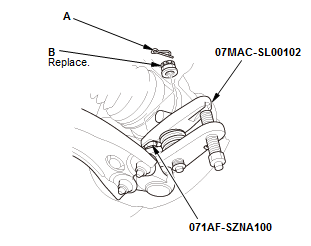

  1. Remove the cotter pin (A).

  2. Remove the nut (B).

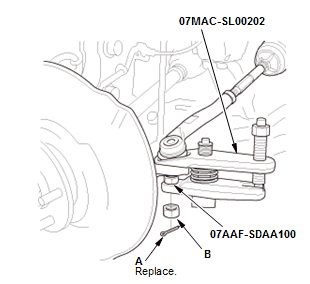

  3. Disconnect the tie-rod end ball joint from the ball joint thread protector the knuckle using the ball joint remover .

  NOTE:  Be careful not to damage the ball joint boot when installing the ball joint remover.

• 9. Lower Arm Ball Joint - Disconnect

  Courtesy of HONDA, U.S.A., INC.

  1. Remove the lock pin (A).

  2. Remove the castle nut (B).

  3. Disconnect the lower arm ball joint from the knuckle using the ball joint thread protector and the ball joint remover .

  NOTE:  Be careful not to damage the ball joint boot when installing the ball joint remover.

• 10. Knuckle/Hub Assembly - Remove

  Courtesy of HONDA, U.S.A., INC.

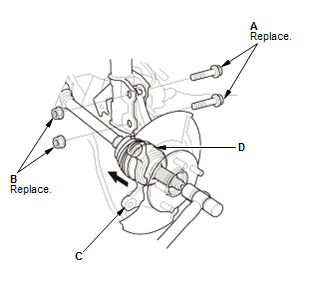

  1. Remove the damper pinch bolts (A) and the self-lock nuts (B)

  2. Pull the knuckle (C) outward, and separate the outboard joint (D) from the front hub using a soft face hammer outward, then remove the knuckle/hub.

  NOTE:

  • Do not pull the driveshaft end outward. The inner driveshaft inboard joint may come apart.
  • During installation, install the damper pinch bolts to the same direction as removal.
• 11. Hub - Remove

  Courtesy of HONDA, U.S.A., INC.

  1. Separate the hub (A) from the knuckle (B) using the hub dis/assy tool and a hydraulic press. Hold the knuckle with the attachment (C) of the hydraulic press or equivalent tool.

  NOTE:

  • Be careful not to damage or deform the splash guard (D).
  • Hold onto the hub to keep it from falling when pressed clear.

  Courtesy of HONDA, U.S.A., INC.

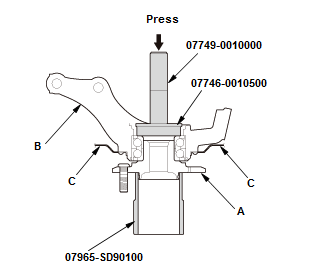

  2. Press out the wheel bearing inner race (A) of the hub (B) using the hub dis/assy tool, a commercially available bearing separator (C), and a hydraulic press.

• 12. Splash Guard and Snap Ring - Remove

  Courtesy of HONDA, U.S.A., INC.

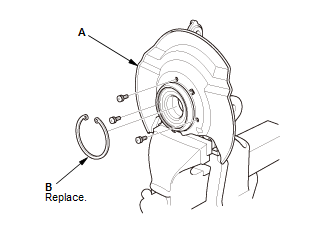

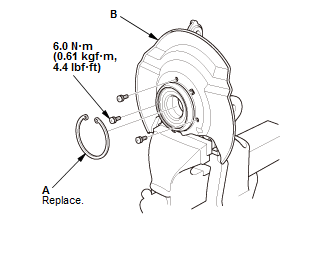

  1. Remove the splash guard (A)

  2. Remove the snap ring (B).

• 13. Bearing - Remove

  Courtesy of HONDA, U.S.A., INC.

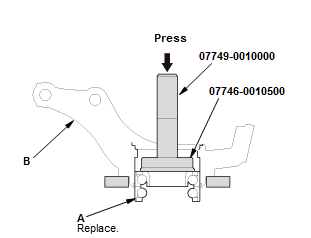

  1. Press the wheel bearing (A) out of the knuckle (B) using the bearing driver attachment, the driver handle, and a hydraulic press.

• 14. Bearing - Install

  Courtesy of HONDA, U.S.A., INC.

  1. Wash the knuckle and the hub thoroughly in high flash point solvent before reassembly

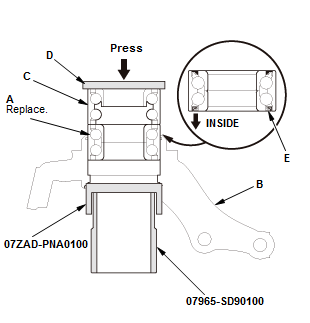

  2. Press a new wheel bearing (A) into the knuckle (B) using the old bearing (C), a steel plate (D), the oil seal driver attachment, the support base, and a hydraulic press.

  NOTE:

  • Install the wheel bearing with the wheel speed sensor magnetic encoder (E) (brown color) toward the inside of the knuckle.
  • Remove any oil, grease, dust, metal debris, and other foreign material from the encoder surface.
  • Keep any magnetic tools away from the encoder surface.
  • Be careful not to damage the encoder surface when you insert the wheel bearing.
• 15. Splash Guard and Snap Ring - Install

  Courtesy of HONDA, U.S.A., INC.

  1. Install a new snap ring (A)

  2. Install the splash guard (B).

• 16. Hub - Install

  Courtesy of HONDA, U.S.A., INC.

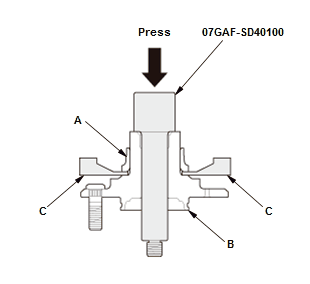

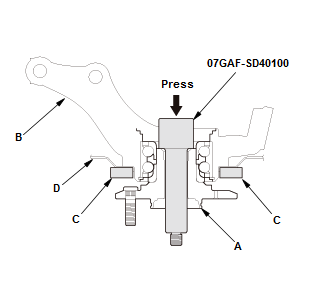

  1. Install the hub (A) onto the knuckle (B) using the attachment, the driver handle, the support base, and a hydraulic press.

  NOTE:  Be careful not to damage the splash guard (C).

• 17. Knuckle/Hub Assembly - Install

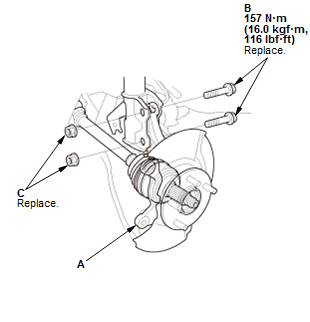

  Fig 1: Knuckle/Hub Assembly Replacement Components With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

  1. Install the knuckle/hub (A).

  NOTE: Apply grease to the mating surfaces of the wheel bearing and the driveshaft outboard joint.

  2. Install new damper pinch bolts (B) and new self-lock nuts (C).

• 18. Lower Arm Ball Joint - Connect

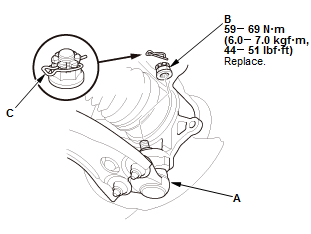

  Fig 2: Lower Arm Ball Joint With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

  1. Connect the lower ball joint (A) to the knuckle

  2. Install a new castle nut (B).

  NOTE:  Torque the castle nut to the lower torque specification, then tighten it only far enough to align the slot with the ball joint pin hole. Do not align the castle nut by loosening it

  3. Install the lock pin (C) as shown.

• 19. Tie-Rod End Ball Joint - Connect

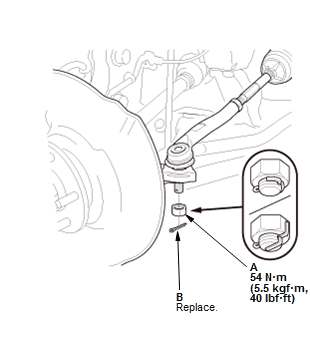

  Fig 3: Tie-Rod End Ball Joint With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

  1. Connect the tie-rod end ball joint

  2. Install the nut (A)

  3. Install a new cotter pin (B) as shown.

• 20.Front Brake Disc- Install
• 21. Driveshaft Spindle Nut - Install

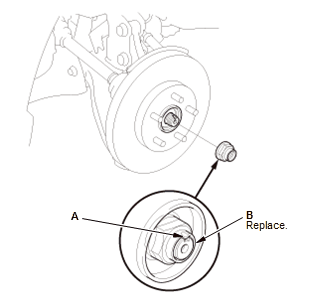

  Fig 4: Driveshaft Spindle Nut With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

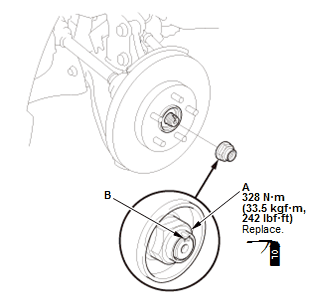

  1. Apply a small amount of engine oil to the seating surface of a new spindle nut (A)

  2. Install the spindle nut

  3. Use a drift to stake the spindle nut shoulder (B) against the driveshaft.

• 22. Front Wheel Speed Sensor - Install

  Courtesy of HONDA, U.S.A., INC.

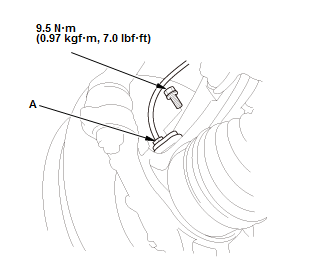

  1. Install the wheel speed sensor (A).

• 23. Front Brake Caliper - Install

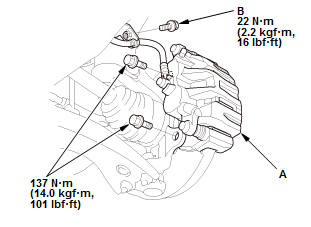

  Fig 5: Front Brake Caliper With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

  1. Install the caliper assembly (A)

  2. Install the brake hose mounting bolt (B).

• 24.Front Wheel - Install
• 25.Wheel Alignment - Check
