Front Lower Arm Compliance Bush Removal & Installation: Removal

1. Vehicle - Lift
2. Front Wheel - Remove
3. Lower Arm - Remove
4. Lower Arm Bushing - Remove

Courtesy of HONDA, U.S.A., INC.

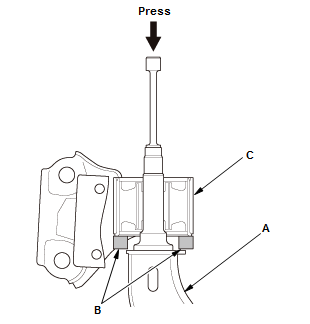

1. Support the lower arm (A) on suitable bar (B) as shown

2. Press out the lower arm with a suitable socket and a hydraulic press, and remove the lower arm from the bushing (C).

NOTE: Be careful not to damage the inside of the bushing hole when pressing on the bushing.
